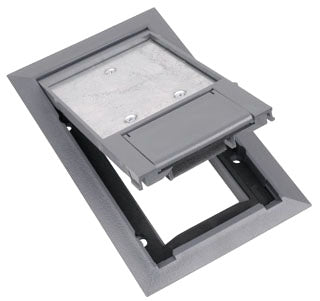

Multiple-service floor boxes deliver power, communications and data from standard conduit with No exposed service fittings. Result: Open office planning flexibility. Ideal for the modern office with workstations that have power, communications and data equipment. Power receptacles and low-voltage connections can be enclosed underfloor in either steel or cast-Iron bodies. Galvanized 14-gauge steel boxes are provided with knockouts from 3⁄4 Inch to 1⁄4 Inch (see engineering data). Cast-Iron bodies have threaded openings for 3⁄4 Inch and 1 Inch conduit.

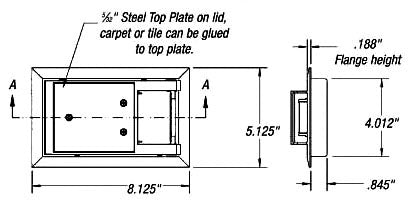

Specifications:

Type: Rectangular
Height: 8-1/8 Inch
Width: 5-1/8 Inch
Box Size: 4-11/16 Inch Width x 3-3/4 Inch Depth x 10-1/4 Inch Height
Material: Polycarbonate
Color: Gray
Approval: UL
