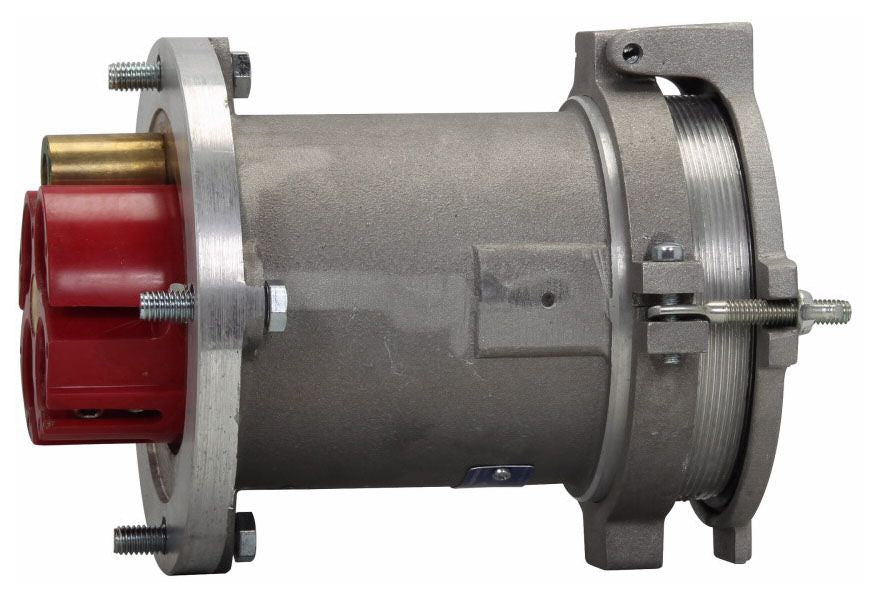

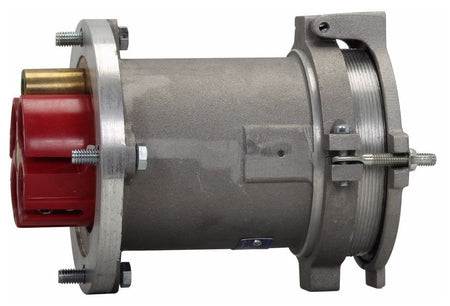

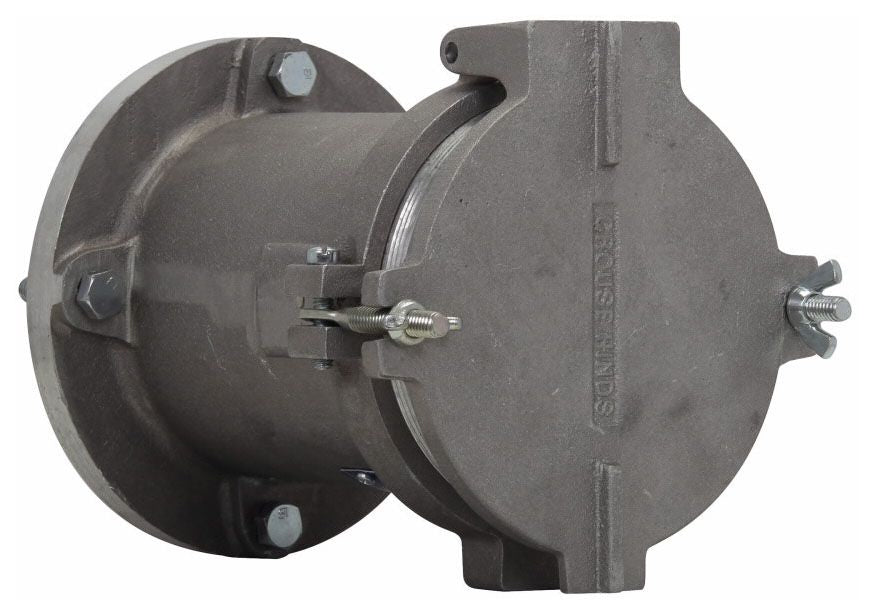

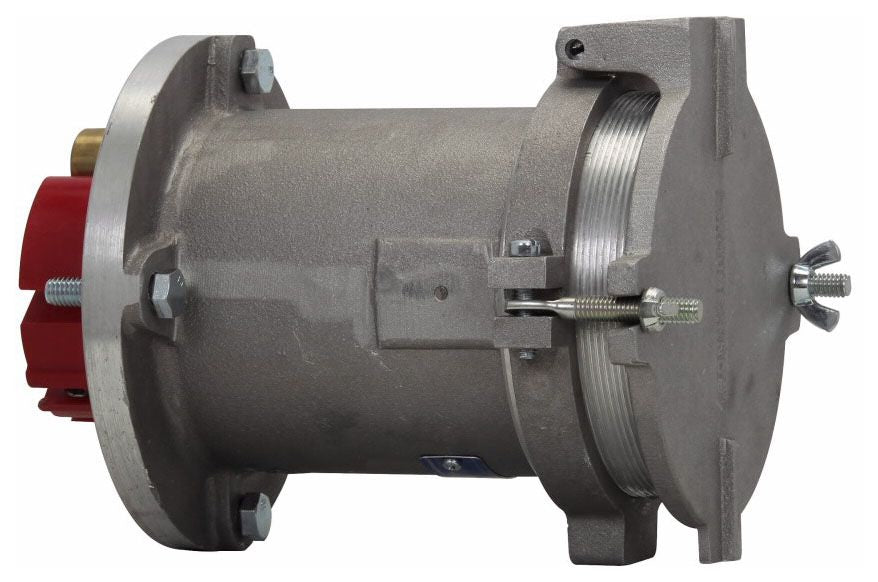

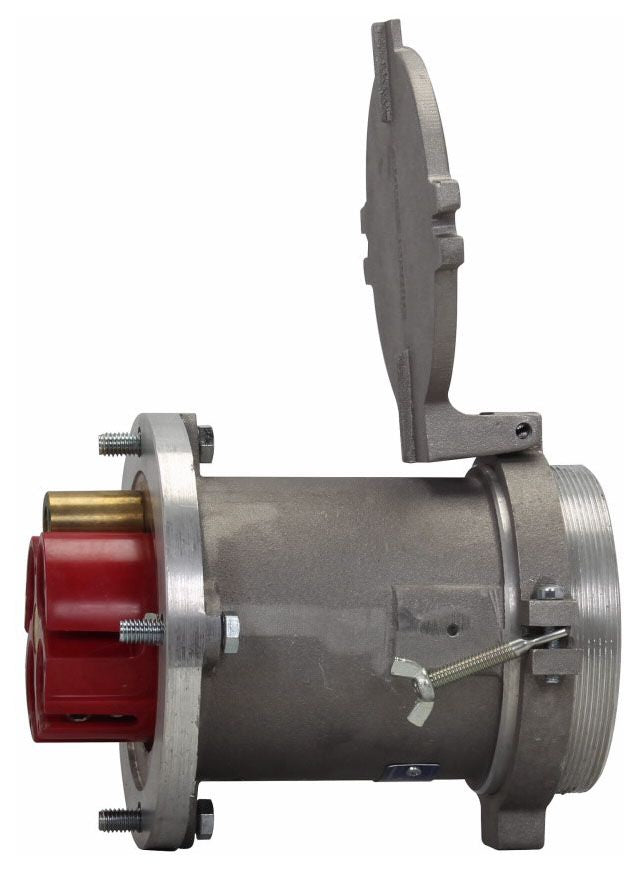

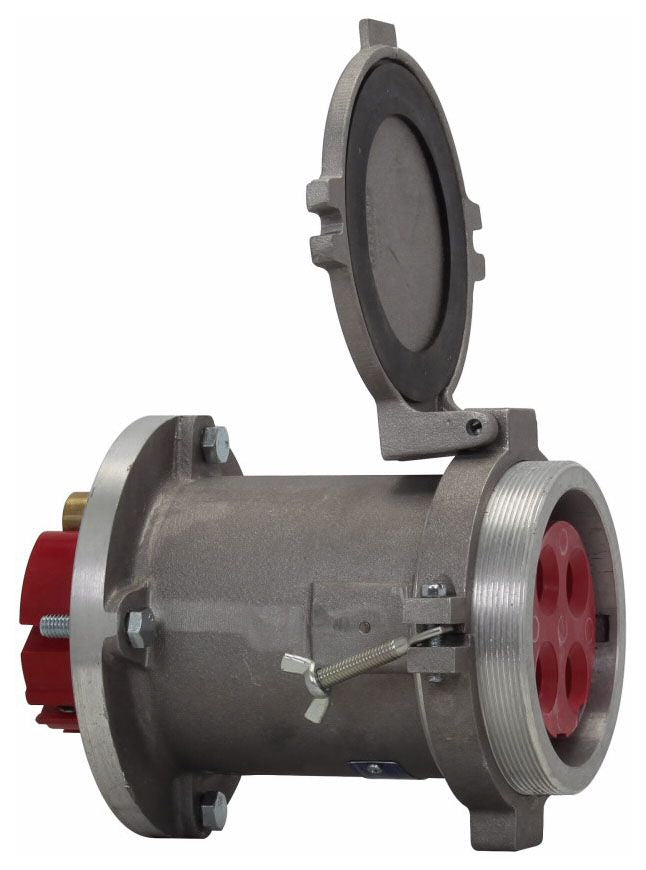

Crouse-Hinds ARL2042 Pin and Sleeve Receptacle

Made of Krydon fiberglass-reinforced polyester, Crouse-Hinds series Arktite non-metallic plugs, receptacles and connectors are used to supply power to portable electrical devices such as welders, motors, pumps and conveyors. Available in 30A, 60A and 100A, these pin and sleeve devices are ideal for use in non-hazardous areas of chemical plants, sewage treatment facilities, cement plants, pulp and paper, food processing and other industrial facilities.Arktite non-metallic pin and sleeve devices feature an innovative arc-snuffing design that enables large power loads to be disconnected under load without causing an arc flash in the area

Specifications:

Type: Polarized
Constructional Feature: Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant
Voltage Rating: 600 VAC at 50 to 400 Hz, 250 VDC
Current Rating: 200 Ampere
Number of Poles: 4
Number of Wires: 3
Grounding Style: 2, Shell, Extra Pole
Door Type: Screw Cover
Material: High Impact Strength Natural Finished Copper Free Aluminum
Grade: Industrial
Approval: UL 1682/1686, CSA C22.2, CE
