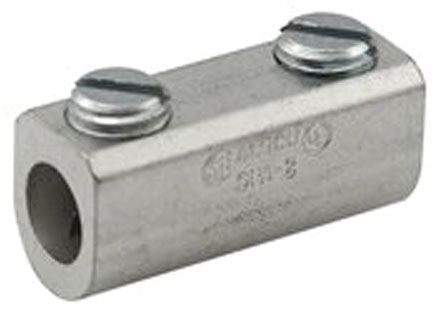

Ilsco SPA-250 Mechanical Connector Splicer/Reducer

Dual Rated; Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Rounded Bottoms; Large Screw Diameters; Wire Stop in Center; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Facilitates Taping; Ensures All Wire Strands are Held Securely; Prevents Dissimilar Metals Coming into Contact; Versatility; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 250 KCMIL
Conductor Material: Copper/Aluminum
Number of Screws: 2
Screw Size: 5/8 Inch Diameter
Hex Size: 5/16 Inch
Size: 2-5/16 Inch Length x 7/8 Inch Width x 1 Inch Height
Body Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Insulation Type: Non-Insulated
Approval: UL, CSA
