Burndy YHO-1 Compression Tap Connector

Out of stock
SKU: 140799
Regular price $1.24
OR

Wide Range, Universal and Reversible Figure H Shaped Aluminum Connector, Conductors are Separated by the Shape of the Connector, Bendable Tabs Secure both Run and Tap Conductors Freeing the Linemans Hands to Work with the Installation Tool, Massive Aluminum Design Minimizes Corrosion Due to Galvanic Corrosion, Pre-Filled with Penetrox Joint Compound and Individually Packaged, RoHS Compliant

Specifications:

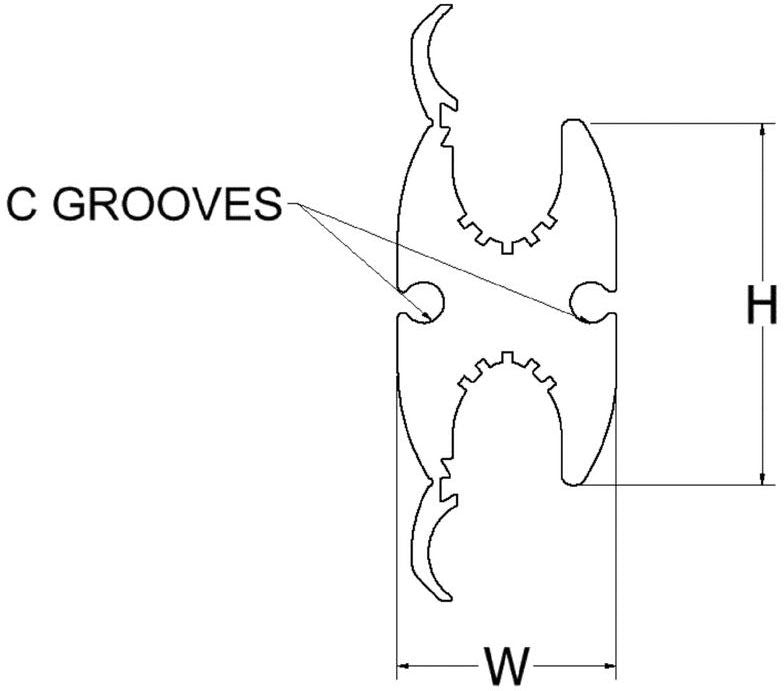

Shape: H
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 6 AWG Solid/Stranded, 6 AWG (ACSR), 6 AWG (Compact ACSR/Copper/Aluminum)
Maximum Run Conductor Size: 1 AWG Solid/Stranded, 2 AWG (ACSR), 1 AWG (Compact ACSR/Copper/Aluminum)
Minimum Tap Conductor Size: 6 AWG Solid/Stranded, 6 AWG (ACSR), 6 AWG (Compact ACSR/Copper/Aluminum)
Maximum Tap Conductor Size: 1 AWG Solid/Stranded, 2 AWG (ACSR), 1 AWG (Compact ACSR/Copper/Aluminum)
Die Index: O
Body Material: Aluminum
Approval: CSA
