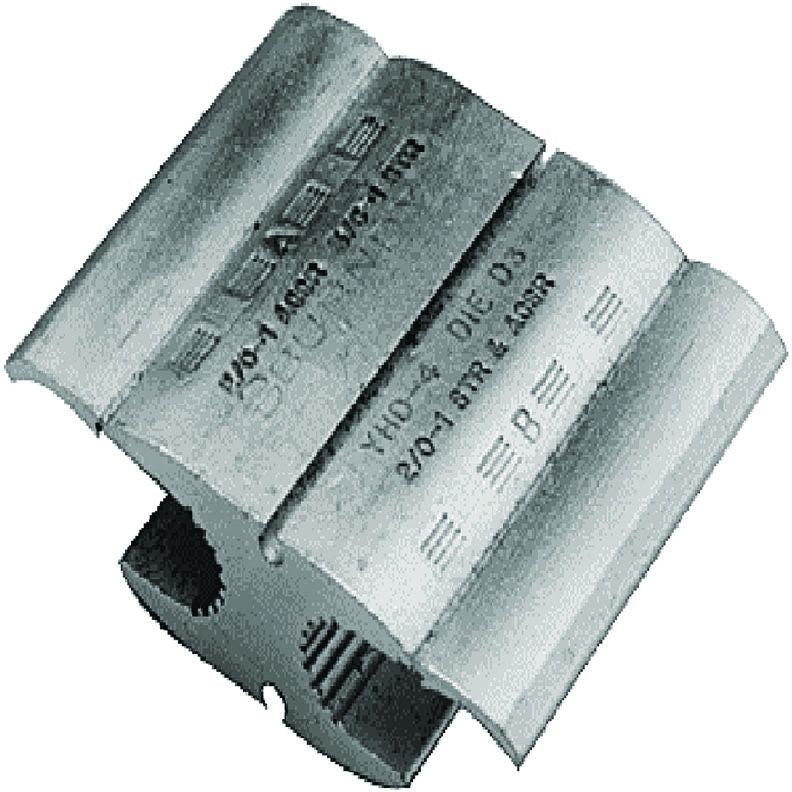

Burndy YHO-2 Compression Tap Connector

Loktap Compression Connectors are High Quality, Range-Taking Devices Which Accommodate Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors; RoHS Compliant

Specifications:

Shape: H
Number of Taps: 1
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 3 AWG (ACSR), 3 AWG Stranded, 2 AWG (Copper/Aluminum/ACSR, Compact), 1 AWG Solid
Maximum Run Conductor Size: 1/0 AWG (ACSR), 1/0 AWG (ACSR, Compact), 2/0 AWG (Copper/Aluminum, Compact), 2/0 AWG Solid/Stranded
Minimum Tap Conductor Size: 6 AWG (ACSR), 6 AWG (Copper/Aluminum/ACSR, Compact), 6 AWG Solid/Stranded
Maximum Tap Conductor Size: 2 AWG (ACSR), 1 AWG (Copper/Aluminum/ACSR, Compact), 1 AWG Stranded, 1/0 AWG Solid
Die Index: O
Body Material: Aluminum
Approval: CSA
