Burndy YHD4 Compression Tap Connector

Out of stock
SKU: 140802
Regular price $2.87
OR

Loktap Compression Connectors are High Quality, Range-Taking Devices Which Accommodate Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors; RoHS Compliant

Specifications:

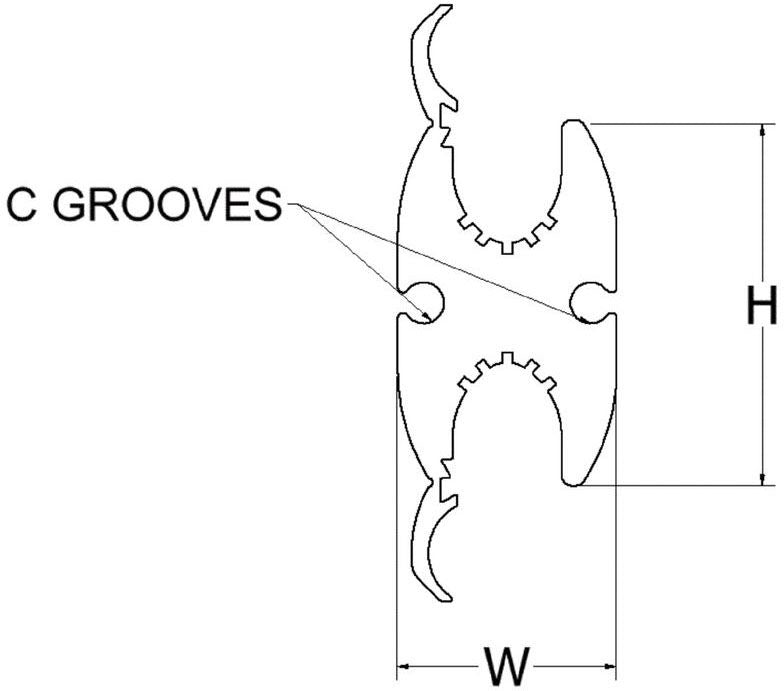

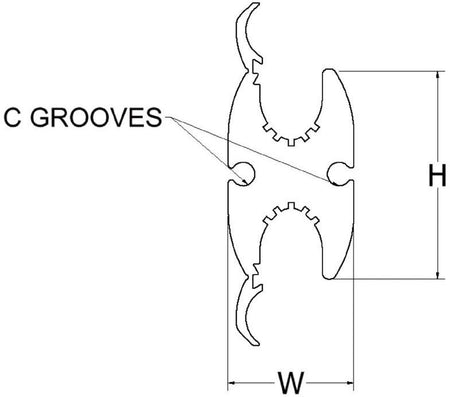

Shape: H
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 2/0 AWG Solid, 1 AWG Stranded, 1 AWG (ACSR), 1/0 AWG (Compact ACSR/Copper/Aluminum)
Maximum Run Conductor Size: 4/0 AWG Solid, 3/0 AWG Stranded, 2/0 AWG (ACSR), 3/0 AWG (Compact ACSR/Copper/Aluminum)
Minimum Tap Conductor Size: 2/0 AWG Solid, 1 AWG Stranded, 1 AWG (ACSR), 1/0 AWG (Compact ACSR/Copper/Aluminum)
Maximum Tap Conductor Size: 3/0 AWG Solid, 2/0 AWG Stranded, 2/0 AWG (ACSR), 2/0 AWG (Compact ACSR), 3/0 AWG (Compact Copper/Aluminum)
Die Index: D3
Body Material: Aluminum
Approval: CSA
