Loktap Compression Connectors are High Quality, Range-Taking Devices Which Accommodate Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors; RoHS Compliant

Specifications:

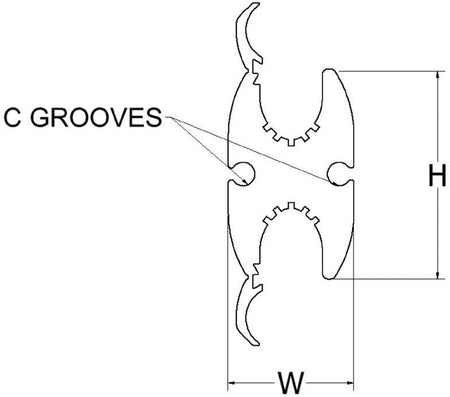

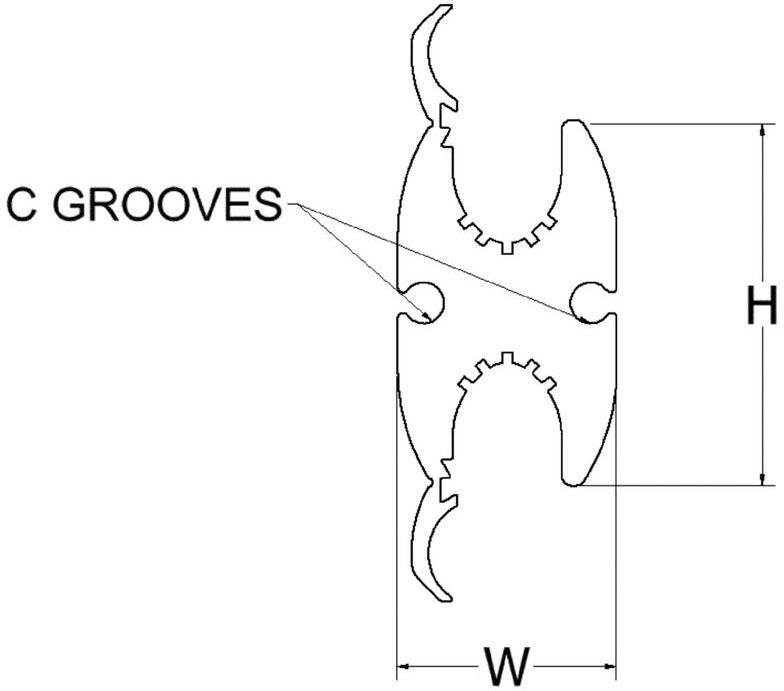

Shape: H
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 250 KCMIL Solid, 3/0 AWG (ACSR), 4/0 AWG (Compact ACSR/Copper/Aluminum)
Maximum Run Conductor Size: 300 KCMIL Solid, 4/0 AWG Stranded, 4/0 AWG (ACSR), 266 KCMIL (Compact ACSR/Copper/Aluminum)
Minimum Tap Conductor Size: 6 AWG Solid, 6 AWG Stranded, 6 AWG (ACSR), 6 AWG (Compact ACSR/Copper/Aluminum)
Maximum Tap Conductor Size: 1/0 AWG Solid, 1 AWG Stranded, 2 AWG (ACSR), 1 AWG (Compact ACSR/Copper/Aluminum)
Die Index: D3
Body Material: Aluminum
Approval: CSA
