Burndy YHD350 Compression Tap Connector

Wide Range, Universal and Reversible Figure H Shaped Aluminum Connector, Conductors are Separated by the Shape of the Connector, Bendable Tabs Secure both Run and Tap Conductors Freeing the Linemans Hands to Work with the Installation Tool, Massive Aluminum Design Minimizes Corrosion Due to Galvanic Corrosion, Pre-Filled with Penetrox Joint Compound and Individually Packaged, RoHS Compliant

Specifications:

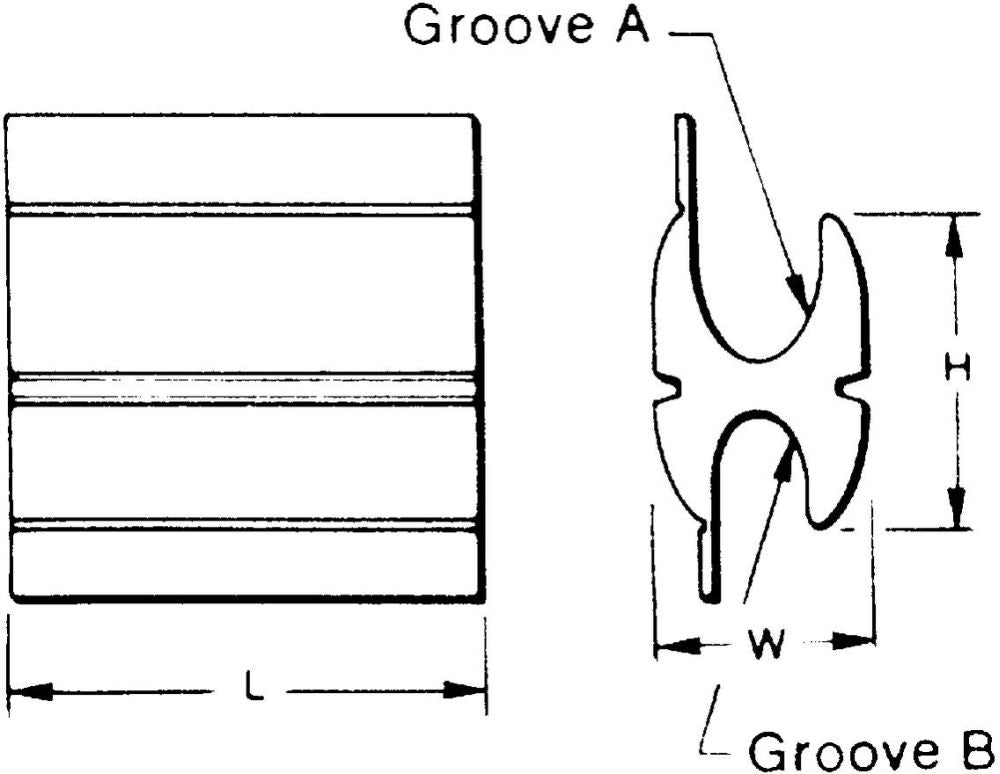

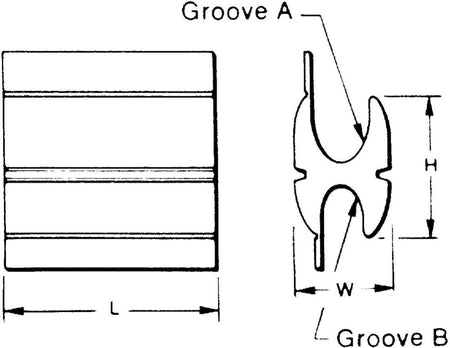

Shape: H
Number of Taps: 1
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 3/0 AWG (ACSR), 3/0 AWG (ACSR, Compact), 3/0 AWG Stranded, 4/0 AWG (Copper/Aluminum, Compact), 250 KCMIL Solid
Maximum Run Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 266 KCMIL (Copper/Aluminum/ACSR, Compact), 300 KCMIL Solid
Minimum Tap Conductor Size: 1 AWG (ACSR), 1 AWG Stranded, 1/0 AWG (Copper/Aluminum/ACSR, Compact), 2/0 AWG Solid
Maximum Tap Conductor Size: 2/0 AWG (ACSR), 2/0 AWG (ACSR, Compact), 2/0 AWG Stranded, 3/0 AWG (Copper/Aluminum, Compact), 3/0 AWG Solid
Die Index: D3
Body Material: Aluminum
