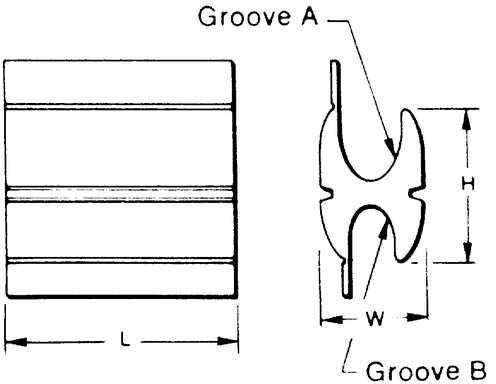

Burndy YHN-550 Compression Tap Connector

Wide Range, Universal and Reversible Figure H Shaped Aluminum Connector, Conductors are Separated by the Shape of the Connector, Bendable Tabs Secure both Run and Tap Conductors Freeing the Linemans Hands to Work with the Installation Tool, Massive Aluminum Design Minimizes Corrosion Due to Galvanic Corrosion, Pre-Filled with Penetrox Joint Compound and Individually Packaged, RoHS Compliant

Specifications:

Shape: H
Number of Taps: 1
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 250 KCMIL Stranded, 266 KCMIL (ACSR), 300 KCMIL (Copper/Aluminum, Compact), 300 KCMIL (Compressed ACSR)
Maximum Run Conductor Size: 477 KCMIL (ACSR), 500 KCMIL Stranded, 556 KCMIL (Copper/Aluminum, Compact), 556 KCMIL (Compressed ACSR)
Minimum Tap Conductor Size: 2/0 AWG (ACSR), 2/0 AWG (Compressed ACSR), 2/0 AWG Stranded, 3/0 AWG (Copper/Aluminum, Compact), 3/0 AWG Solid
Maximum Tap Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 266 KCMIL (Copper/Aluminum, Compact), 266 KCMIL (Compressed ACSR), 300 KCMIL Solid
Die Index: N
Body Material: Aluminum
Approval: RUS
