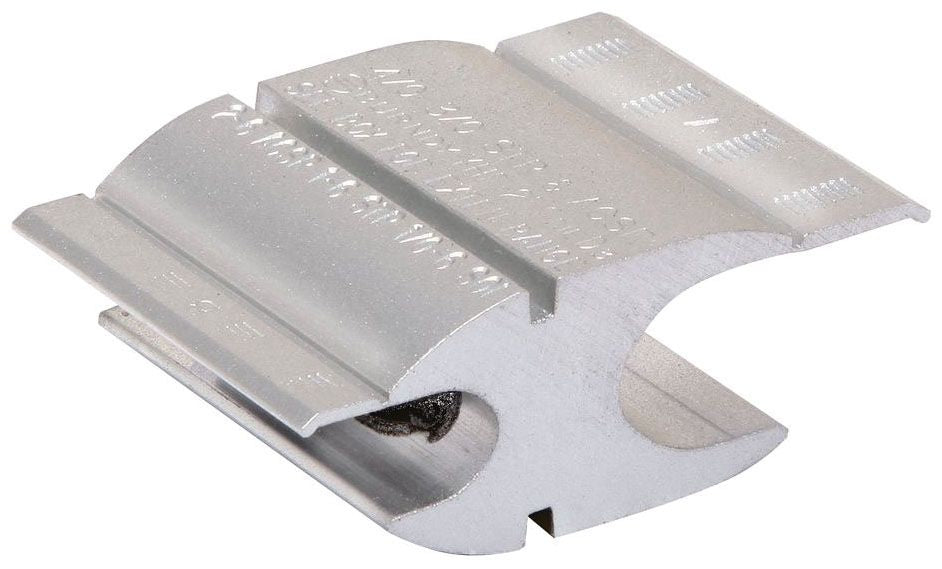

Burndy YHN-450 Compression Tap Connector

Out of stock
SKU: 140809
Regular price $16.07
OR

Wide Range, Universal and Reversible Figure H Shaped Aluminum Connector, Conductors are Separated by the Shape of the Connector, Bendable Tabs Secure both Run and Tap Conductors Freeing the Linemans Hands to Work with the Installation Tool, Massive Aluminum Design Minimizes Corrosion Due to Galvanic Corrosion, Pre-Filled with Penetrox Joint Compound and Individually Packaged, RoHS Compliant

Specifications:

Shape: H
Number of Taps: 1
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 226 KCMIL (Compressed ACSR), 250 KCMIL (Copper/Aluminum, Compact)
Maximum Run Conductor Size: 397 KCMIL (ACSR), 400 KCMIL Stranded, 477 KCMIL (Compressed ACSR), 500 KCMIL (Copper/Aluminum, Compact)
Minimum Tap Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 KCMIL (Copper/Aluminum, Compact), 266 KCMIL (Compressed ACSR), 336 KCMIL Solid
Maximum Tap Conductor Size: 397 KCMIL (ACSR), 400 KCMIL Stranded, 477 KCMIL (Compressed ACSR), 477 KCMIL Solid, 500 KCMIL (Copper/Aluminum, Compact)
Die Index: N
Body Material: Aluminum
Approval: RUS
