Burndy YHN-525 Compression Tap Connector

Out of stock
SKU: 140810
Regular price $20.38
OR

Wide Range, Universal and Reversible Figure H Shaped Aluminum Connector, Conductors are Separated by the Shape of the Connector, Bendable Tabs Secure both Run and Tap Conductors Freeing the Linemans Hands to Work with the Installation Tool, Massive Aluminum Design Minimizes Corrosion Due to Galvanic Corrosion, Pre-Filled with Penetrox Joint Compound and Individually Packaged, RoHS Compliant

Specifications:

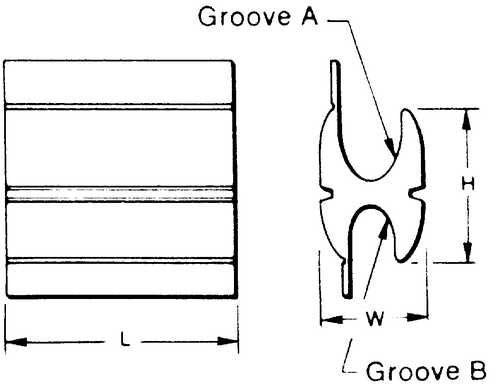

Shape: H
Number of Taps: 1
Conductor Material: Copper/Aluminum/ACSR
Minimum Run Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 KCMIL (Copper/Aluminum, Compact), 266.8 KCMIL (Compressed ACSR)
Maximum Run Conductor Size: 477 KCMIL (ACSR), 500 KCMIL Stranded, 556 KCMIL (Copper/Aluminum, Compact), 556.5 KCMIL (Compressed ACSR)
Minimum Tap Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded, 250 KCMIL (Copper/Aluminum, Compact), 266.8 KCMIL (Compressed ACSR)
Maximum Tap Conductor Size: 477 KCMIL (ACSR), 500 KCMIL Stranded, 556 KCMIL (Copper/Aluminum, Compact), 556.5 KCMIL (Compressed ACSR)
Die Index: N
Body Material: Aluminum
Approval: RUS
