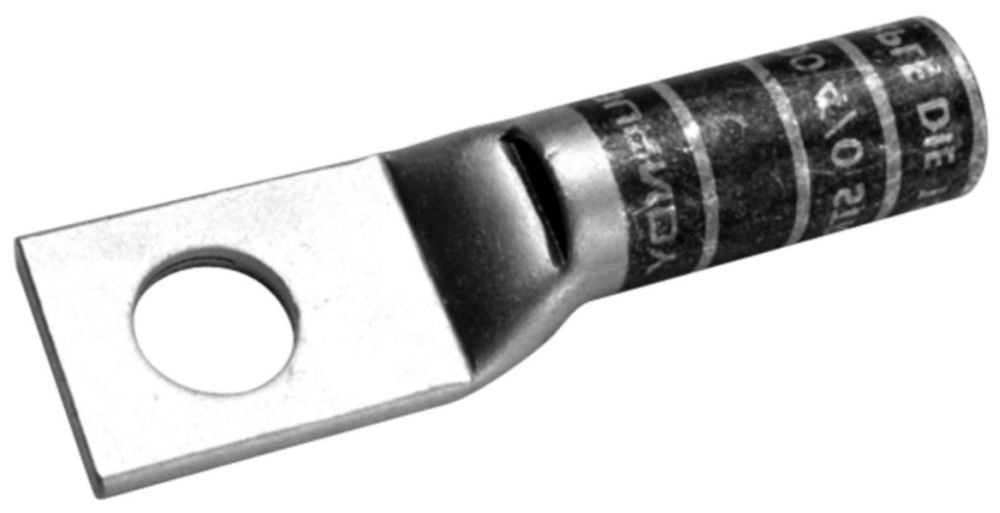

Burndy YAZV26TC38FX Compression Terminal

Out of stock
SKU: 141043
Regular price $15.25

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 325/24, 2/0 AWG (Weld Flex), 2/0 AWG Stranded
Barrel Type: Long, Skived, Straight
Barrel Length: 1.5 Inch
Pad Size: 0.93 Inch W x 0.13 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Black
Die Index: 13
Material: Electro-Tin Plated Copper
Overall Length: 2.8 Inch
Approval: UL, CSA
