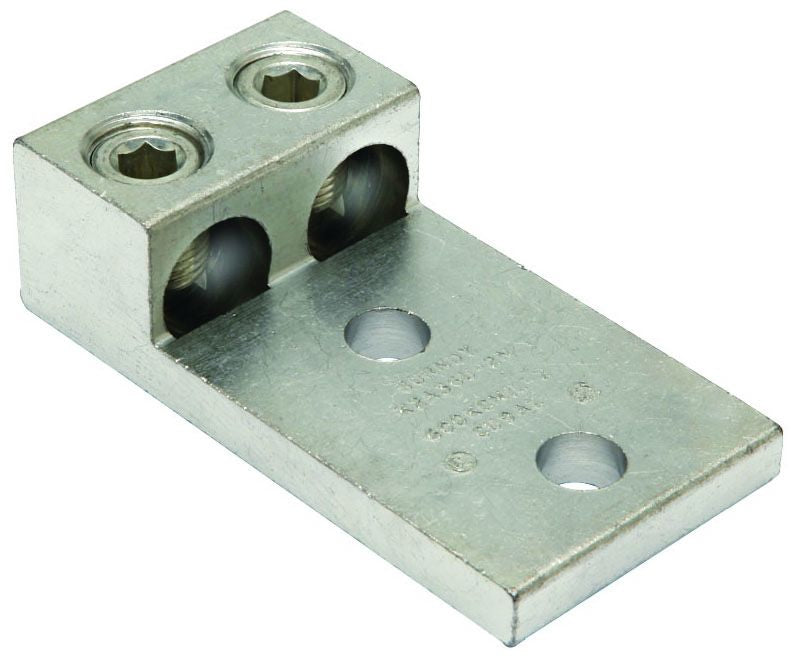

Burndy K2A44U2N Mechanical Cable Terminal Lug
Regular price
$76.96
Couldn't load pickup availability
These Dual-Rated Two-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors
Specifications:
Number of Conductors: 2
Minimum Conductor Size: 500 KCMIL Stranded
Maximum Conductor Size: 1000 KCMIL Stranded
Conductor Material: Aluminum/Copper
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 2 NEMA

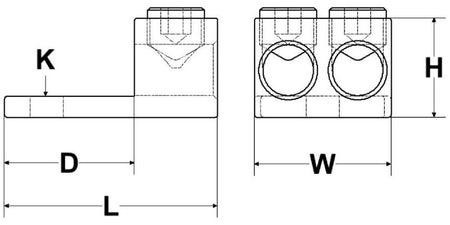

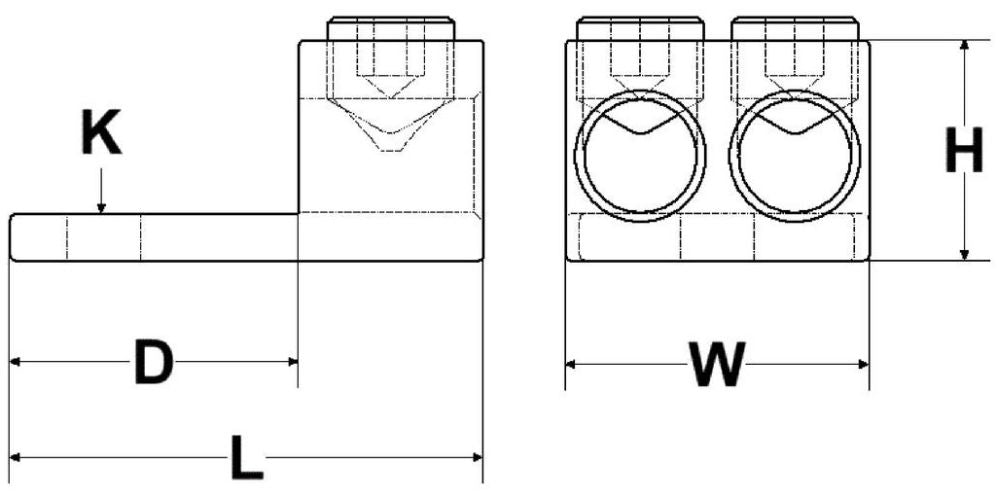

Pad Size: 3.03 Inch L x 3.21 Inch W x 0.5 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4.75 Inch
Approval: UL 468-A, UL 468-B, CSA
