3M

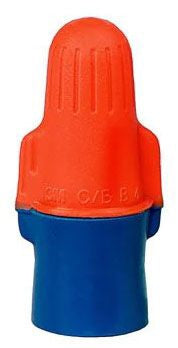

3M Performance Plus Wire Connector, Flexible Steel Spring Connectors, 22-12 AWG, Orange and Blue Color (O/B+), Jug of 500

In stock - 52 items available
SKU: 142306
Regular price $80.26
OR

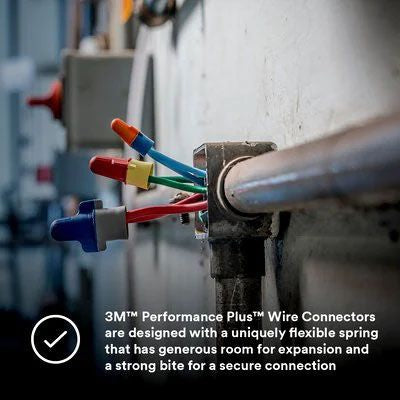

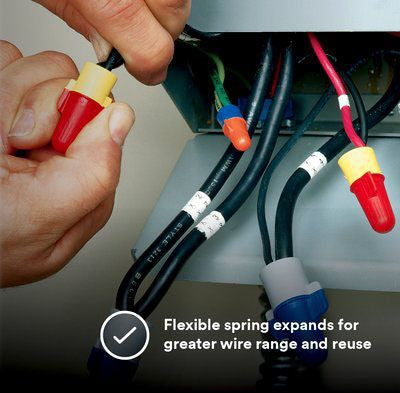

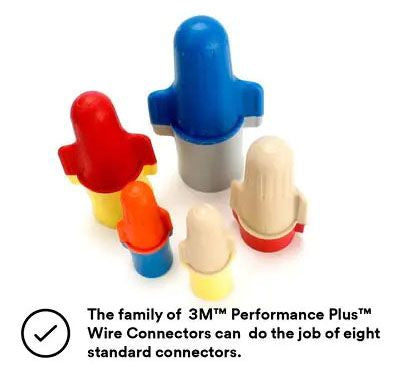

Jar of 500 Wire Connectors. 3M Performance Plus Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.3M Performance Plus Wire Connectors are UL Listed for 600 volts on copper wire. They are in five color/wire range s: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.

Specifications:

Type: Wing
Voltage Rating: 600 Volt, 1000 Volt (Lighting Fixture/Luminaries/Sign)
Wire Type: Copper, Solid/Stranded
Wire Size: 22 to 12 AWG
Minimum Wire Combination Size: (2) #22
Maximum Wire Combination Size: (3) #12
Shell Material: Plastic
Color: Orange/Blue
Temperature Rating: 221 Deg F
Package: 500 per Case
Approval: UL, IEC, CSA, CE
