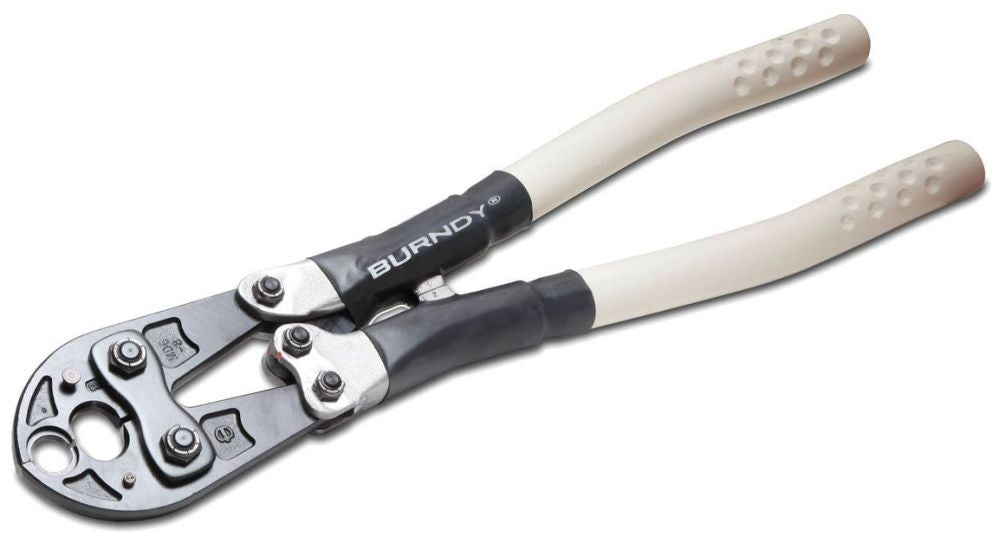

Burndy MD6-8 Hand Held Crimping Tool

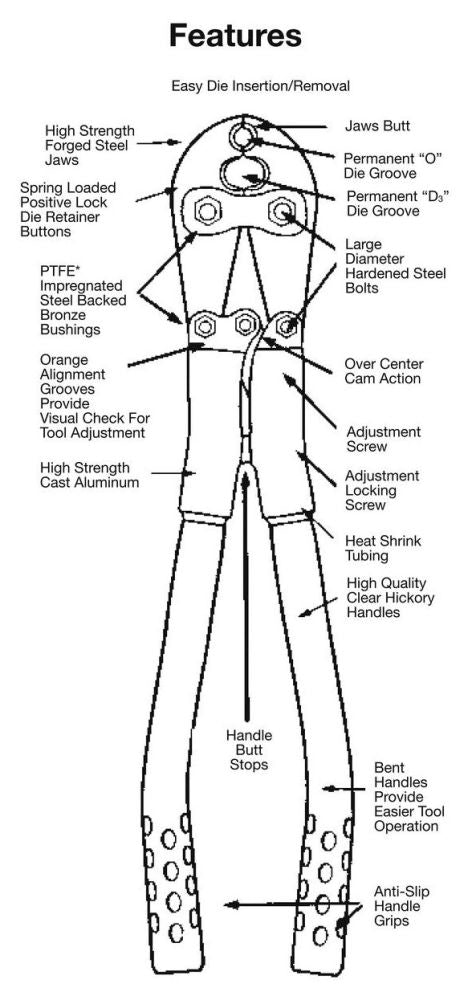

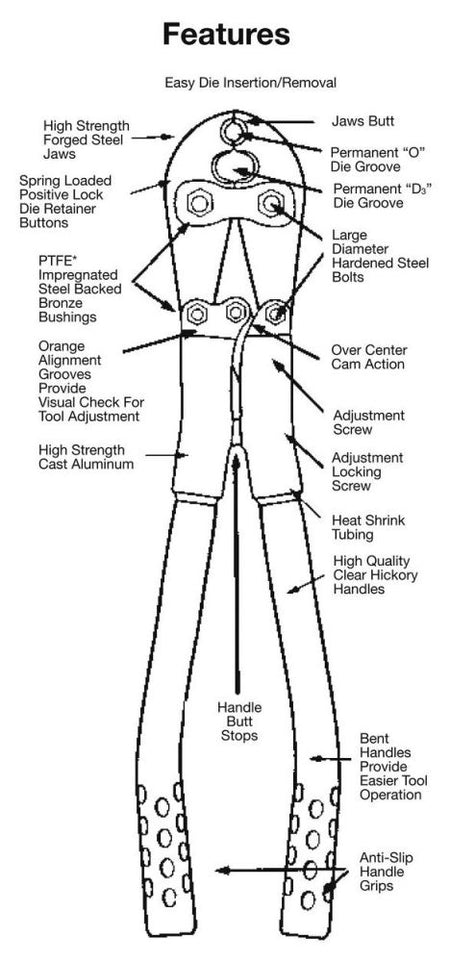

Increased Strength and Greater Bearing Area is Provided with Larger Steel Bolts; Fast, Easy, One-Hand Die Insertion; No Lost Dies with Spring Loaded Positive Lock Die Retainer Buttons; Full Crimp Force Assured with Over Center Cam Action; Easy Tool Adjustment with Allen Wrench; Operator Protection Provided with Butt Stops and Heat Shrink Tubing; Long Life Expectancy Provided with Select Clear Hickory Handles and Lightweight High; RoHS Compliant

Specifications:

Type: Positive Locking Spring Loaded Die
Die Included: D3 Die, O Die
Die Options: W, X, W-VT, W-BG
Terminal/Splice Type: Full Tension/Non-Tension Splice, Tap, Terminal, Connector
Cable Size: 10 AWG Solid to 2/0 AWG Stranded (Copper, Tap), 14 AWG Solid to 4/0 AWG (ACSR, Aluminum, Tap), 10 AWG Stranded to 4/0 AWG (ACSR, Splice/Terminal), 6 AWG to 4/0 AWG Stranded (Aluminum/Copper, Code, Connector)
Length: 25-3/8 Inch
Width: 7.04 Inch
Handle Type: Bent Aluminum Grip, Straight
Handle Material: Fiberglass
Crimping Force: 9000 Lb
