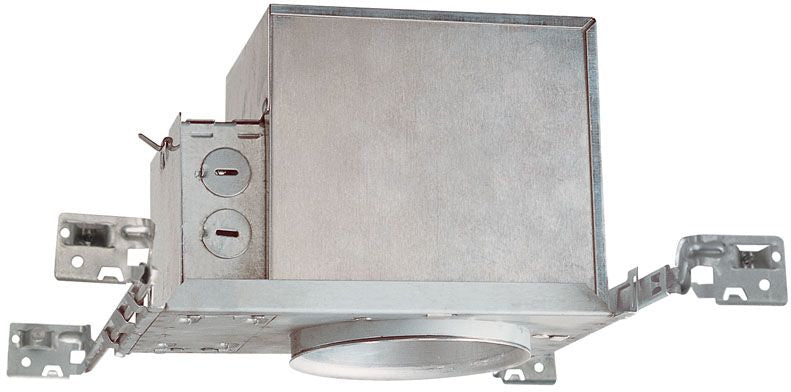

Juno Lighting IC1 Incandescent Downlight Housing
Couldn't load pickup availability
The energy-efficient, Air-Loc sealed double wall construction housing does not require a separate Air-Loc gasket. It stops infiltration and exfiltration of air with all trims, reducing heating and cooling costs. The IC-rated housing can be completely covered with insulation.
Specifications:
Type: Double Wall, Miniature Universal Housing
Air Rating: Air Tight
Lamp Type: A19/R14/R16/R20/PAR16/PAR20
Lamp Wattage: 25/30/35/50/60 Watt
Lamp Mounting Position: Vertical
Nominal Aperture Size: 4 Inch
Aperture Shape: Round
Ceiling Type: Insulated
Ceiling Opening Size: 4-1/2 Inch
Installation: New Construction
Height: 6-3/4 Inch
Housing Material: 0.032 Inch Aluminum Housing, 22 Gauge Die-Formed Galvanized Steel Mounting Frame
Junction Box Type: Pre-Wired with (6) 1/2 Inch, (1) 3/4 Inch Knockout, (8) 12 AWG 90 Deg C Branch Circuit Conductor, (4) Non-Metallic Sheathed Cable Connector and Grounding Wire
Application: Damp/Wet Location, Indoor, Residential
Approval: UL, CSA
