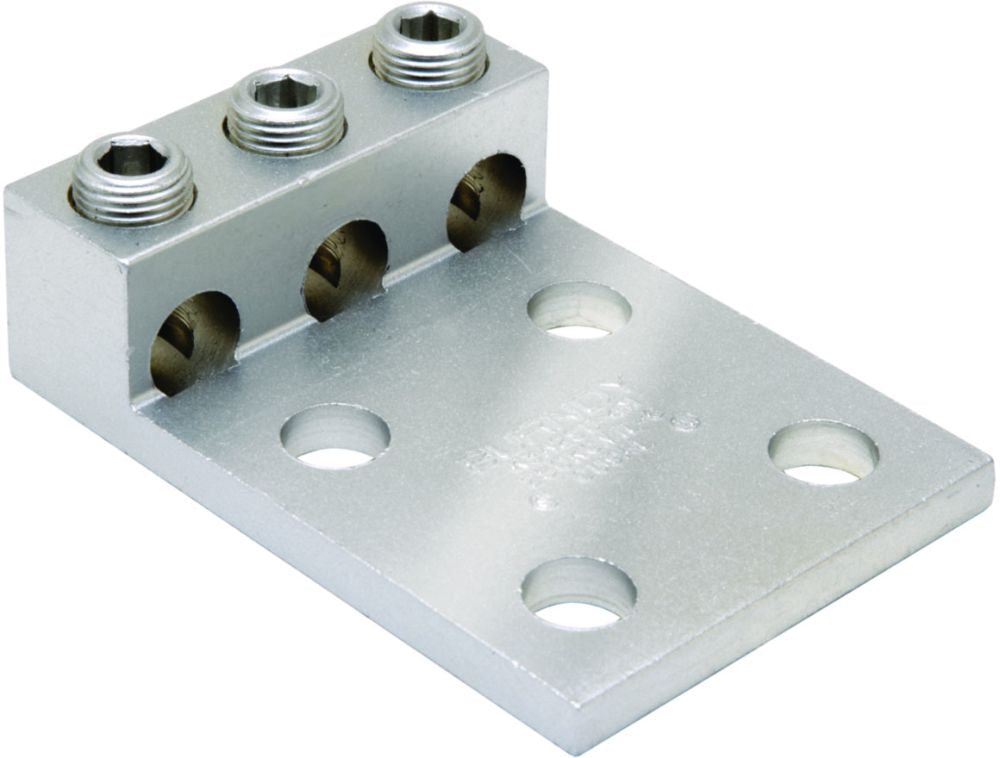

Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors

Specifications:

Number of Conductors: 3
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 3/0 AWG Stranded
Conductor Material: Aluminum/Copper
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 4 NEMA

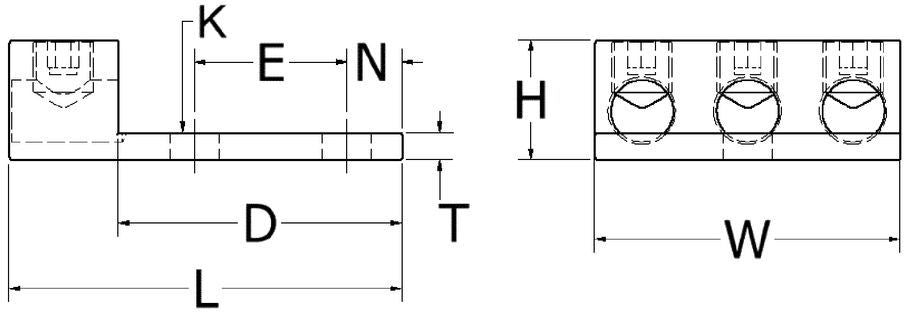

Pad Size: 3 Inch L x 2.83 Inch W x 0.31 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 3.88 Inch
Approval: UL 468-A, UL 468-B, CSA
