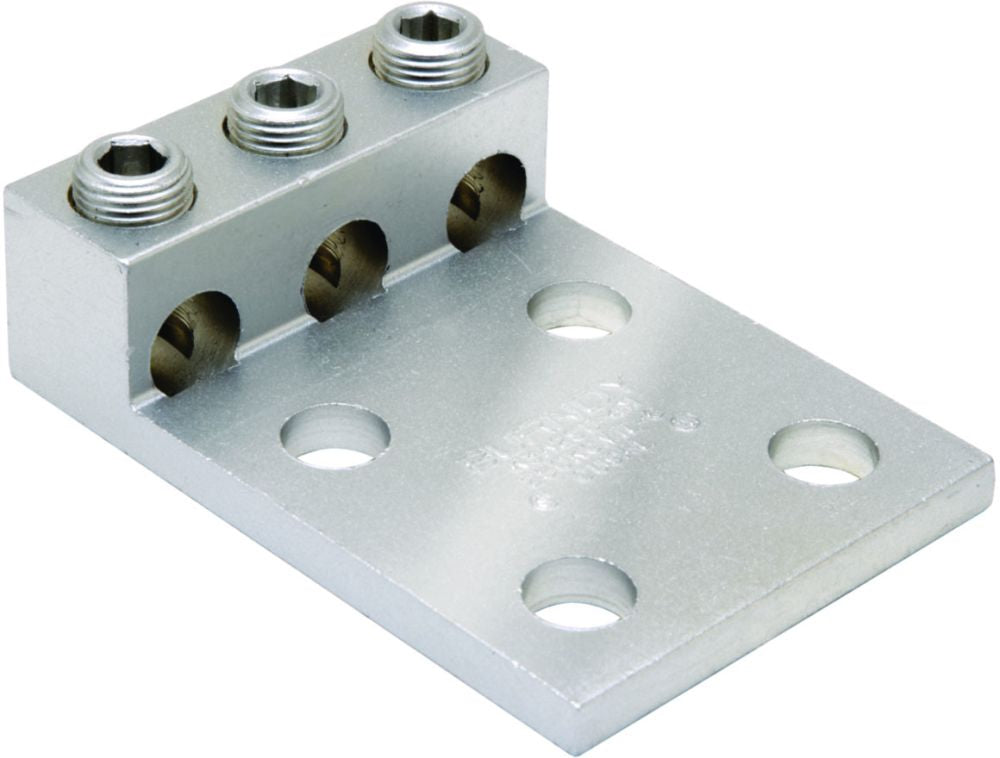

Burndy K3A29U4N Mechanical Cable Terminal Lug

Out of stock
SKU: 144278
Regular price $45.78

Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors


Number of Conductors: 3
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 250 KCMIL Stranded
Conductor Material: Aluminum/Copper
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 4 NEMA

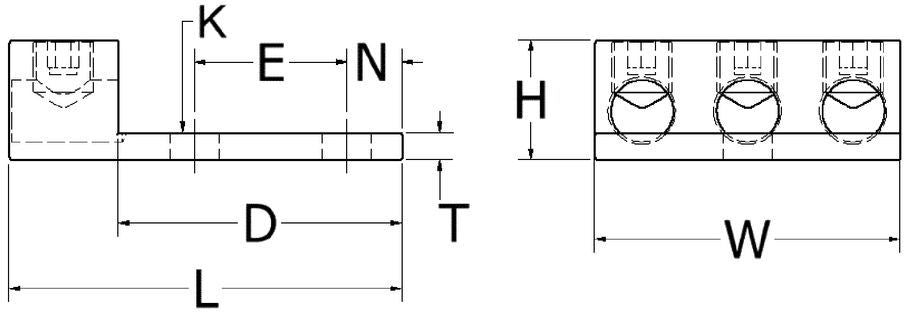

Pad Size: 3 Inch L x 3.02 Inch W x 0.31 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4 Inch
Approval: UL 468-A, UL 468-B, CSA
