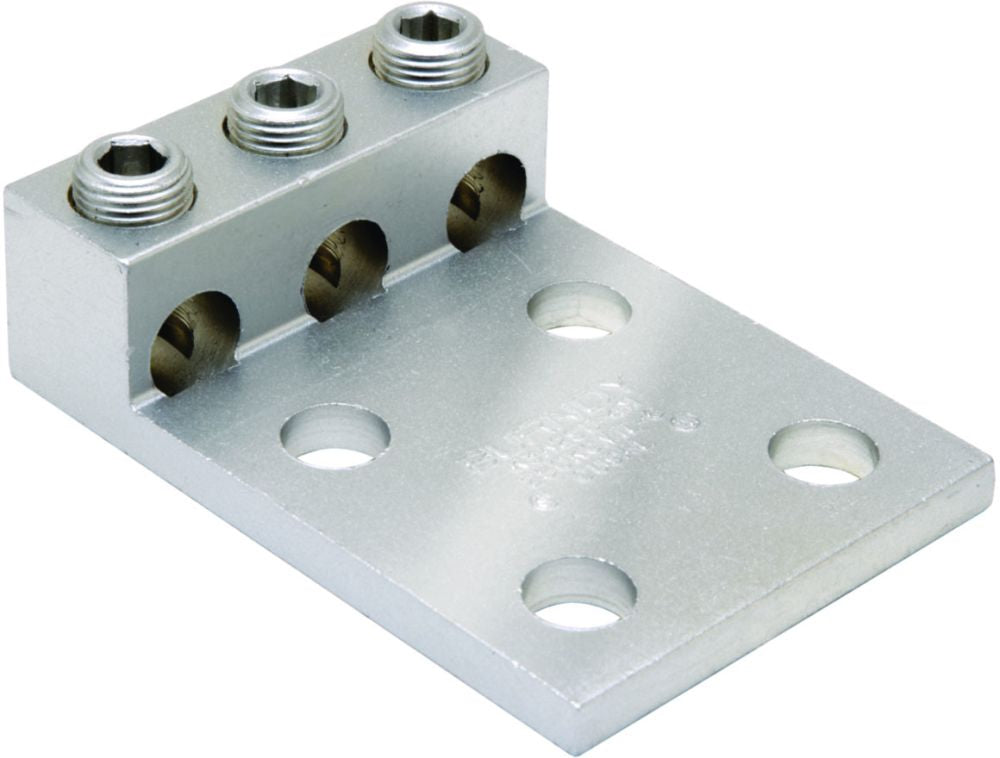

Burndy K3A31U4N Mechanical Cable Terminal Lug

Out of stock
SKU: 144281
Regular price $75.01
OR

Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors

Specifications:

Type: Universal, Dual Rated
Number of Conductors: 3
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 350 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 4 NEMA

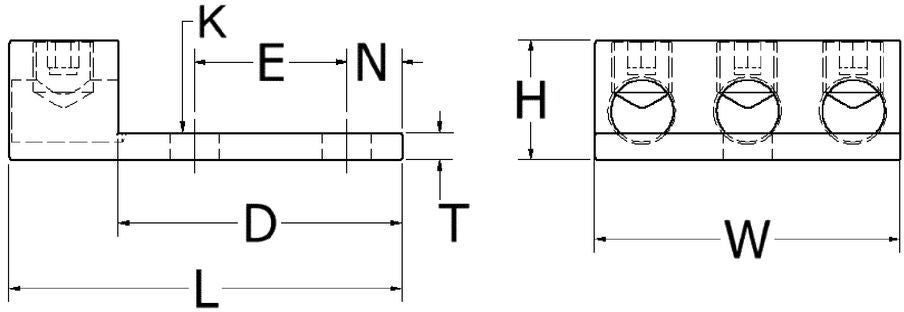

Pad Size: 3 Inch Length x 3 Inch Width x 0.31 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 4.31 Inch
Approval: UL 468A/B, CSA
