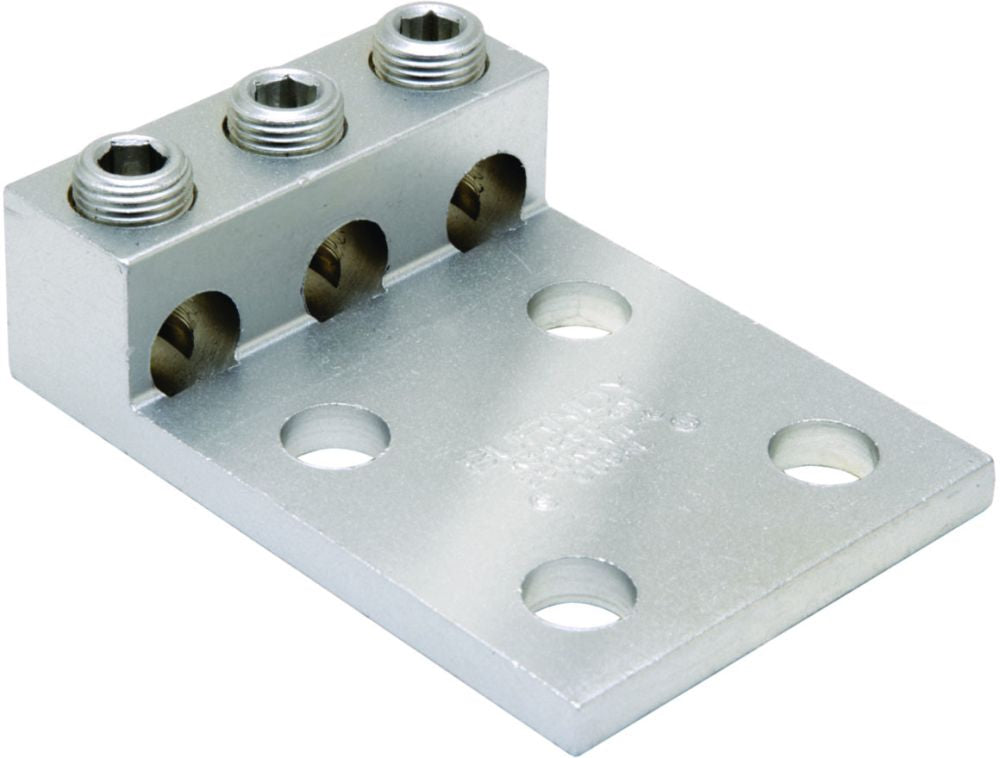

Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors; RoHS Compliant

Specifications:

Number of Conductors: 3
Minimum Conductor Size: 2 AWG Stranded Aluminum/Copper
Maximum Conductor Size: 600 KCMIL Aluminum, 600 KCMIL Stranded Copper
Conductor Material: Aluminum/Copper
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 4 NEMA

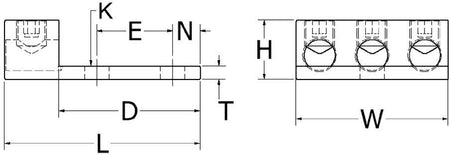

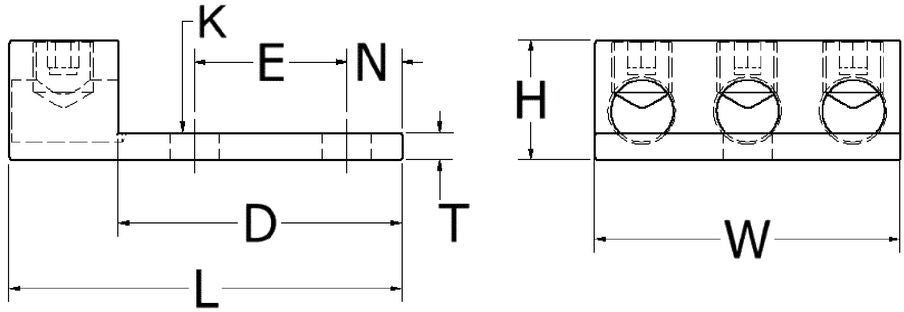

Pad Size: 3.22 Inch L x 3.64 Inch W x 0.44 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4.69 Inch
Approval: UL 468A/486B, CSA
