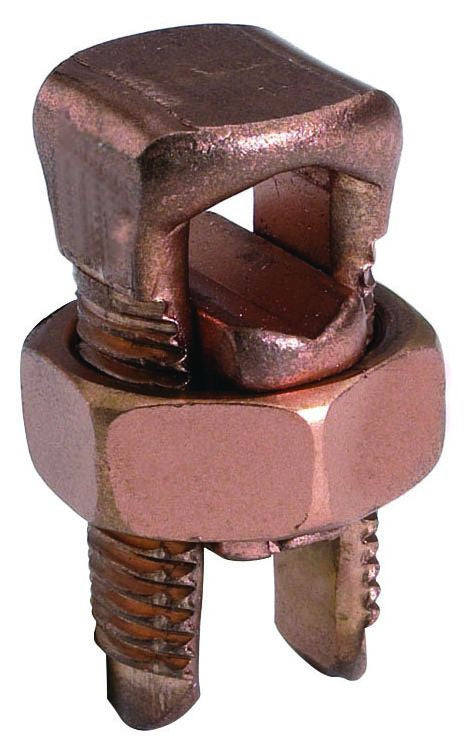

Burndy KS39 Split Bolt Connector

Compact, High Strength, High Copper Alloy Servit Split-Bolt has Free-Running Threads and Easy to Grip Wrench Flat; Highly Resistant to Season Cracking and Corrosion, the Servit Provides Maximum Pressure and Assures a Secure Connection on All Combinations of Run and Tap Conductor

Specifications:

Installation: Split Bolt
Conductor Material: Copper/Copperweld
Minimum Run Conductor Size: 4/0 AWG Stranded (Copper)
Maximum Run Conductor Size: 750 KCMIL (Copper), (19) 5 AWG Stranded (Copperweld)
Minimum Tap Conductor Size: 4/0 AWG Stranded (Copper)
Maximum Tap Conductor Size: 750 KCMIL (Copper), (19) 5 AWG Stranded (Copperweld)
Material: High Copper Alloy
Approval: UL, CSA
