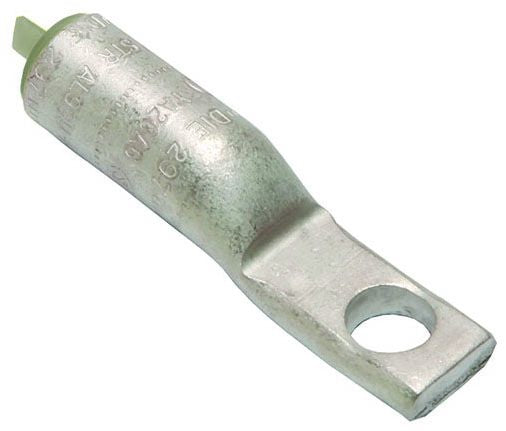

Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 1 Inch
Pad Size: 0.6 Inch W x 0.21 Inch Thk
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Tan
Die Index: 296
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 2.31 Inch
Approval: UL 468A/468B, CSA
