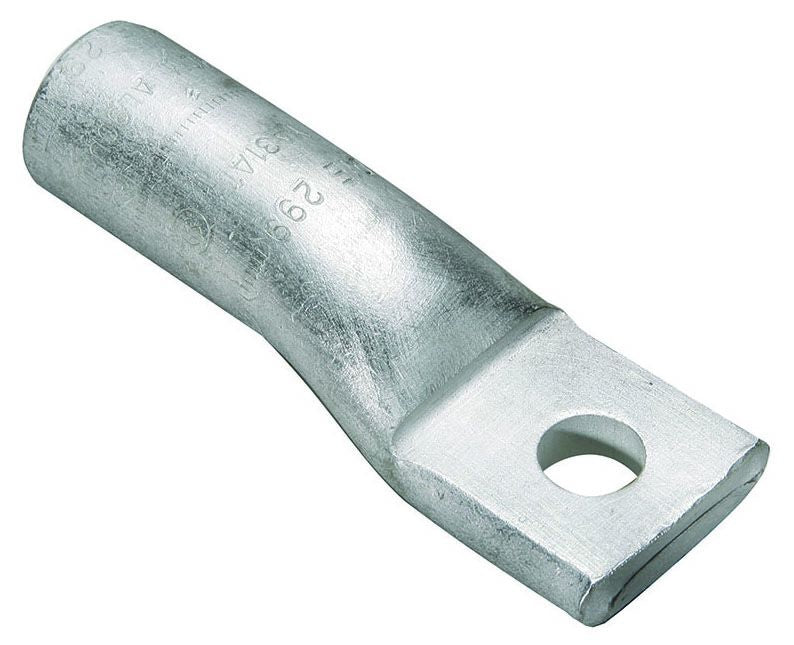

Burndy YA26A1 Compression Cable Lug
Regular price
$11.76
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper)
Barrel Type: Closed, Straight, Non-Insulated
Barrel Length: 1.17 Inch
Pad Size: 1.36 Inch Length x 1.03 Inch Width x 0.2 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Olive
Die Index: 297
Material: Electro Tin Plated Aluminum
Overall Length: 3.03 Inch
Approval: UL, CSA
