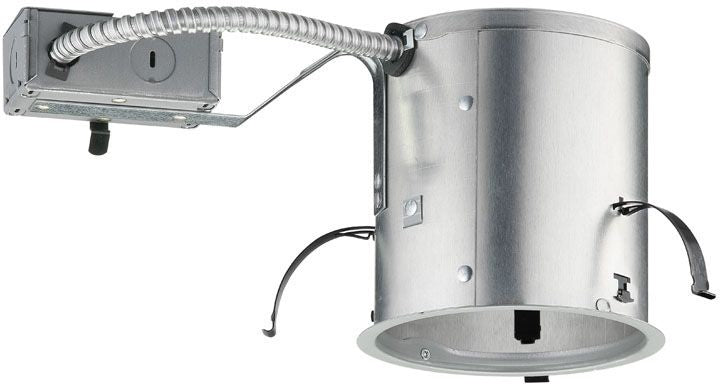

The remodel shallow housing is ideal for applications where the backside of the ceiling is not accessible and where vertical installation space is limited. The energy-efficient housing offers an IC rating to be completely covered with insulation and Air-Loc installation to stop infiltration and exfiltration of air, reducing heating and cooling costs.

Specifications:

Type: Shallow Universal Housing
Air Rating: Air Tight
Lamp Type: BR30/R20/PAR20/PAR30/PAR30L
Lamp Wattage: 35/50 Watt
Lamp Mounting Position: Vertical
Nominal Aperture Size: 5 Inch
Aperture Shape: Round
Ceiling Type: Insulated
Ceiling Opening Size: 5-1/2 Inch
Installation: Remodel

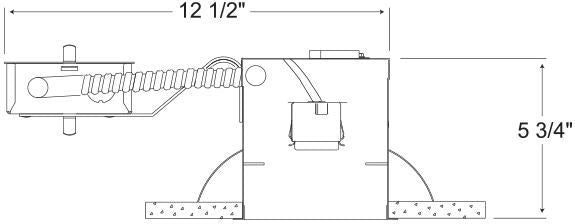

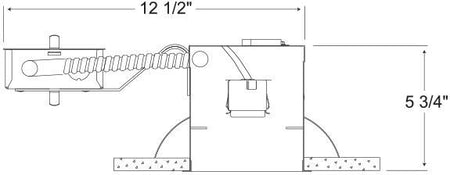

Height: 5-3/4 Inch
Housing Material: 0.032 Inch Aluminum Housing
Junction Box Type: Pre-Wired with (5) 1/2 Inch Knockout, (4) 12 AWG 90 Deg C Branch Circuit Conductor, (4) Non-Metallic Sheathed Cable Connector
Application: Damp Location
Approval: UL, CUL
