Designed for ground mounting; Heavy duty TGIC polyester coating; Reinforced hand holes with grounding lug and removable cover for easy wiring access; Pole caps, base covers and bolts are sold separately; Custom manufactured for each application

Specifications:

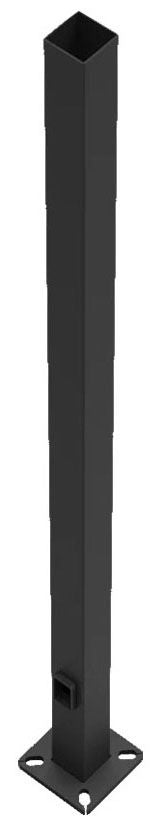

Type: Square Straight
Number of Fixtures: 2
Nominal Mounting Height: 20 Foot
Shaft Bottom Size: 4 Inch
Shaft Top Size: 4 Inch
Shaft Wall Thickness: 1/8 Inch
Shaft Mounting Type: Square Base
Mounting Base Size: 8 Inch Length x 8 Inch Width x 3/4 Inch Thickness
Bolt Circle Diameter: 8-1/2 Inch
Bolt Size: 3/4 Inch Diameter x 17 Inch Length x 3 Inch Thickness
Hand Hole Type: 3 Inch Width x 5 Inch Height
Fixture Mounting Type: Drill
Arm Capacity: 360 Pound at 70 MPH, 350 Pound at 80 MPH, 350 Pound at 90 MPH, 350 Pound at 100 MPH, 350 Pound at 110 MPH, 340 Pound at 120 MPH
Wind Load Rating: 70/80/90/100/110/120 MPH
Effective Projected Area: 10.7 Square Foot at 70 MPH, 7 Square Foot at 80 MPH, 4.3 Square Foot at 90 MPH, 2.5 Square Foot at 100 MPH, 1.1 Square Foot at 110 MPH, 0.1 Square Foot at 120 MPH
Shaft Material: Steel
Shaft Finish: Polyester Powder Coated
Shaft Color: Bronze
