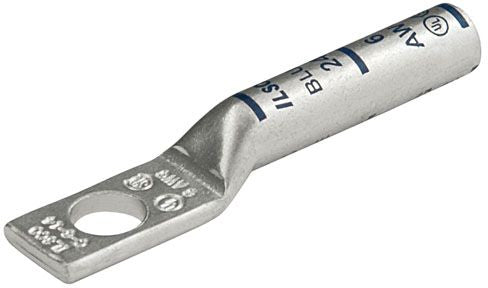

Ilsco CLNS-300-12 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 300 KCMIL
Barrel Type: Long
Barrel Length: 2 Inch
Pad Size: 1.25 Inch L x 1.189 Inch W x 0.152 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: White
Die Index: I-66
Material: Seamless Electro-Tin Plated Copper
Overall Length: 3.837 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
