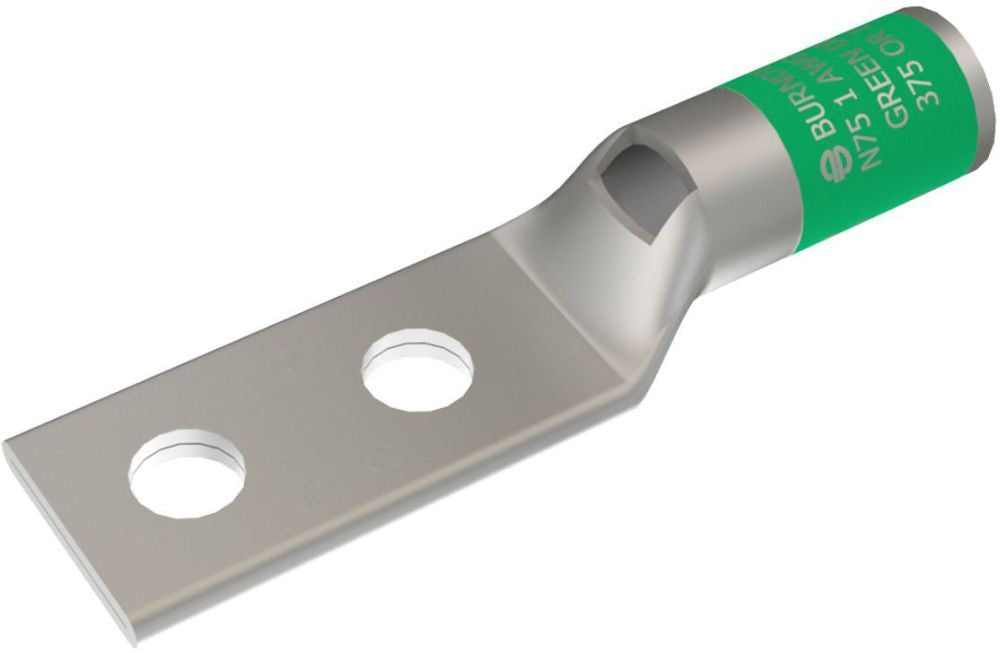

Burndy YA1C2L Compression Cable Lug

Out of stock
SKU: 145095
Regular price $13.20
OR

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1 AWG Solid/Stranded (Code)
Barrel Type: Short, Skived, Standard, Straight
Barrel Length: 0.88 Inch
Pad Size: 0.68 Inch W x 0.1 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 7/8 Inch
Stud Size: 5/16 Inch
Color: Green
Die Index: 11/375
Material: Electro-Tin Plated Copper
Overall Length: 2.82 Inch
Approval: UL, CSA
