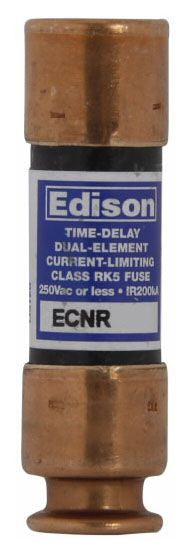

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protection

Specifications:

Type: Class RK5
Characteristics: 10 Sec Time Delay (at 500 Percent Rated Load), Dual Element
Voltage Rating: 250 Volt AC, 125 Volt DC
Current Rating: 30 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical)
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 2 Inch
Approval: UL, CSA C22.2, CE
