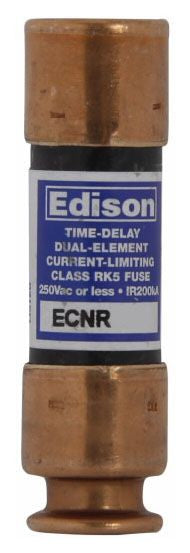

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protection

Specifications:

Type: Class RK5
Characteristics: 8 Sec Time Delay (at 500 Percent Rated Load), Dual Element
Voltage Rating: 250 VAC, 125 VDC
Current Rating: 1 Ampere
Interrupting Rating: 200 Kiloampere (Symmetrical)
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 2 Inch
Approval: UL, CSA C22.2, CE
