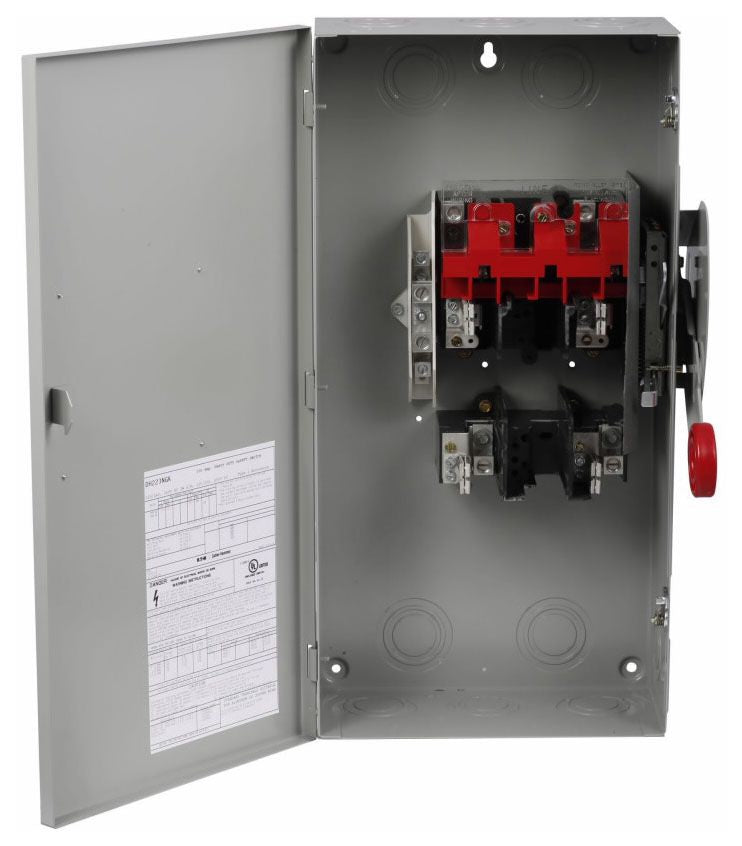

Visible Double-Break Rotary Blade Mechanism Two Points of Contact Provide a Positive Open and Close, Easier Operation, and also Help Prevent Contact Burning for Longer Contact Life; Clearly Visible Handle the Position (On or Off) Can be Clearly Seen from a Distance and the Length Provides for Easy Operation; Interlocking Mechanism Door Cannot be Opened when the Handle is in the on Position; Front and Side Operable Defeater Mechanism Provides for User Access when Necessary on Single-Throw Switches; Clear Line Shield Protects Against Accidental Probe Holes Enable tee User to Test if the Line Side is Energized without Removing the Shield; Triple Padlocking Capability Personnel Safety Feature be cause the Large hasp can Accommodate up to Three 3/8-Inch (9.5 MM) Shank Locks; Tangential Knockout

Specifications:

Type: Heavy Duty Safety
AC Voltage Rating: 480 Volt AC Star/277 Volt AC, 600 Volt AC Star/347 Volt AC
DC Voltage Rating: 250 Volt
Current Rating: 100 Amp
Power Rating: 20 HP at 240 Volt AC 1-Phase, 40 HP at 480 Volt AC 1-Phase, 50 HP at 600 Volt AC 1-Phase, 40 HP at 240 Volt AC 3-Phase, 75 HP at 480 Volt AC 3-Phase, 100 HP at 600 Volt AC 3-Phase, 20 HP at 250 Volt DC
Number of Poles: 3
Number of Wires: 3
Fuse Provision: Non-Fusible
Neutral Type: No
Enclosure: NEMA 1
Size: 11.13 Inch Width x 10 Inch Depth x 21.69 Inch Height
Enclosure Material: Steel
Finish: Painted
Approval: UL 98
