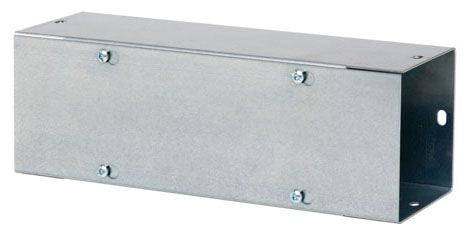

Hoffman Enclosures F66T136GV Wireway Straight Section
Couldn't load pickup availability
Keyhole Screw Slots on Flat Covers; Open Top Assembly; This Galvanized Wireway Features an Open Design on One Side So Wires and Cables Can be Laid in Safely Along the Entire Run without Pulling; A Variety of Lengths and Fittings Accommodate Design Requirements; Lay-In Flat-Cover Type 1 Straight Sections are Used for Enclosing Wires and Cables in Wireway Runs; Sections are Completely Open on One Side So Wires and Cables Can be laid in Along Wireway Run; No Pulling Through of Wires or Cables Prevents Damage to Insulation that Often Occurs in a Pull-Through Wiring System; RoHS/REACH Compliant
Specifications:
Type: Lay-In
Cover Type: Screw
Length: 36 Inch
Width: 6 Inch
Height: 6 Inch
Knockouts: No
Material: 14/16 Gauge Steel
Finish: Galvanized
Enclosure: NEMA 1, IP30
Approval: UL 870, CUL, CSA C22.2
