Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering unsurpassed dual-element, current-limiting, time-delay performance and interrupting ratings of 300kA RMS Sym. Complementing the Low-Peak family are our Limitron products offering both Fast-acting and economical time-delay performance in our KTU, KLU, and KRP-CL products.

Specifications:

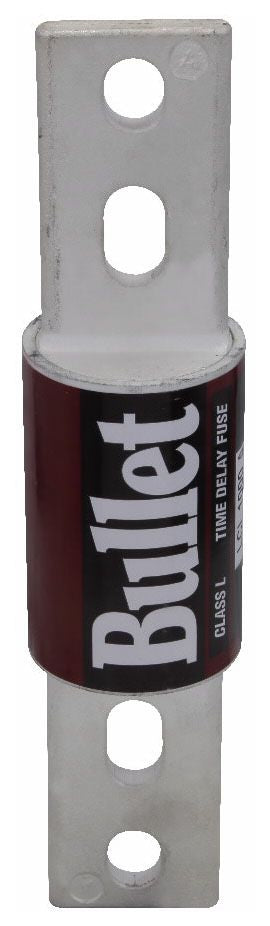

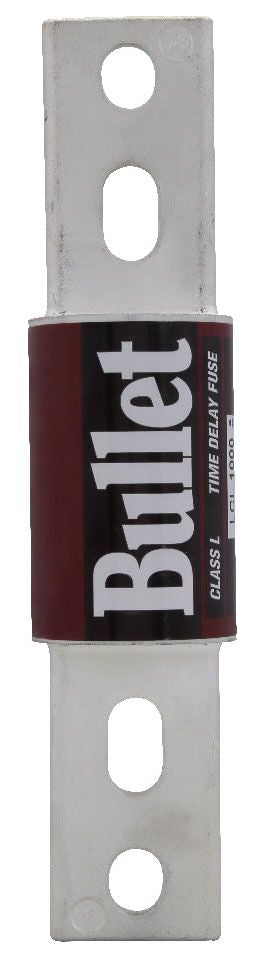

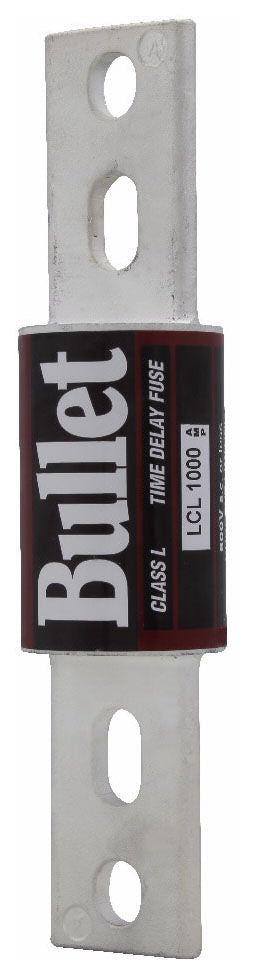

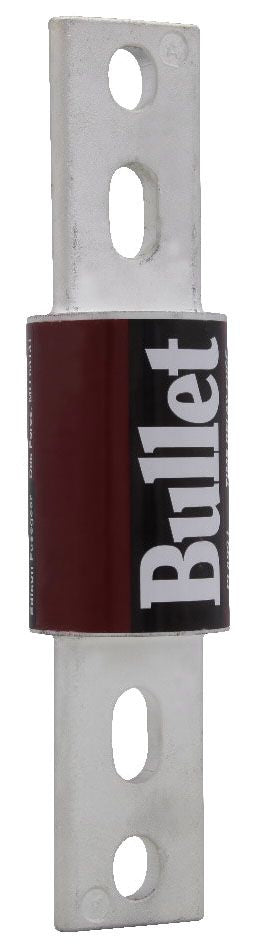

Type: Class L
Characteristics: 5 Second Time Delay
Voltage Rating: 600 Volt AC
Current Rating: 1200 Amp
Interrupting Rating: 200 Kiloamp
Terminal Type: Blade
Diameter: 2.78 Inch
Length: 10.75 Inch
Approval: UL, CSA, CE
