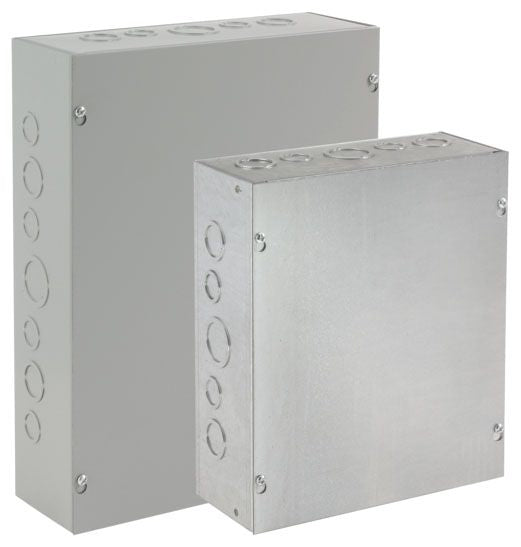

Hoffman Enclosures ASE18X18X4 Screw Cover Enclosure
Couldn't load pickup availability
Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.
Specifications:
Height: 18 Inch
Width: 18 Inch
Depth: 4 Inch
Material: Steel
Material Specification: 16/14/12 Gauge
Finish: Polyester Powder Coated
Color: ANSI 61 Gray
Enclosure: NEMA 1, IP30
Cover Type: Flat, Screw-On
Knockout Location: (18) Sides, (18) Ends
Number of Knockouts: 36
Knockout Size: (8) (1/2 to 3/4 Inch), (8) (3/4 to 1 Inch), (2) (1 to 1-1/4 Inch), Concentric Knockout Sides, (8) (1/2 to 3/4 Inch), (8) (3/4 to 1 Inch), (2) (1 to 1-1/4 Inch) Concentric Knockout Ends
Approval: UL 50/50E, CUL, CSA C22.2
