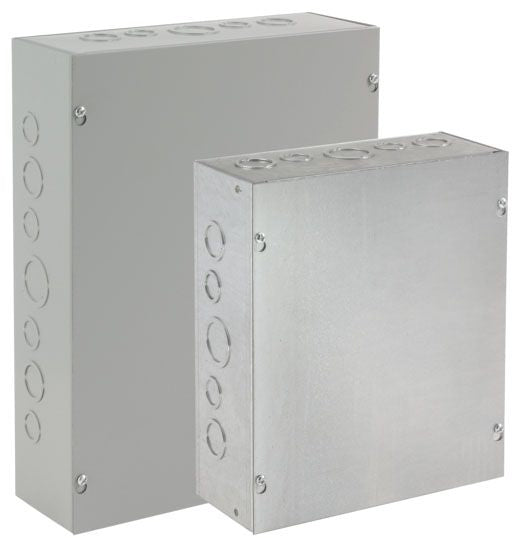

Hoffman Enclosures ASE4X4X3 Screw Cover Enclosure

Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.

Specifications:

Type: Unflanged
Height: 4 Inch
Width: 4 Inch
Depth: 3 Inch
Material: Steel
Material Specification: 16 Gauge
Finish: Polyester Powder Painted
Color: ANSI 61 Gray
Enclosure: NEMA 1, IP30
Mounting: Flush Mount
Cover Type: Flat, Screw-On
Knockout Location: (2) Sides, (2) Ends
Number of Knockouts: 4
Knockout Size: (1) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Sides, (1) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Ends
Approval: UL 50/50E, CUL, CSA C22.2
