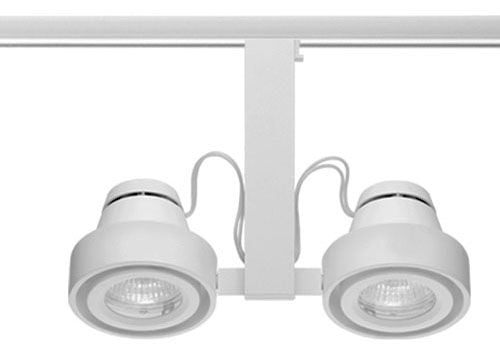

Juno Trac-Master T817-Series Duo enclosed fixtures feature concentric gimbal rings that spring off the bottom edge of the chiseled monolith in a perfect example of “form follows function.” The monolith cleverly conceals the integral transformer and remains perfectly aligned with the trac while the gimbal ring mechanisms are free to provide broad aiming capability. The enclosed lampholder design eliminates any stray backlight effect from the MR16 lamps.

Specifications:

Style: Concentric Gimbal Ring, Duo Enclosed Back
Lamp Type: Ceramic Bi-Pin Base MR16 20 to 50 W Halogen
Transformer Type: 12 V Integral Solid State Electronic

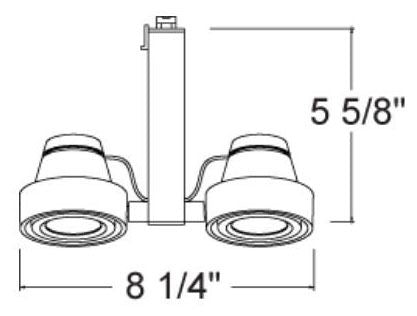

Maximum Extension: 5-5/8 Inch
Size: 8-1/4 Inch W
Material: Extruded Aluminum Vertical Monolith, Durable Die-Cast Aluminum Concentric Gimbal Ring, Die-Cast Aluminum Grid Frame
Finish: White
Approval: UL, CSA
