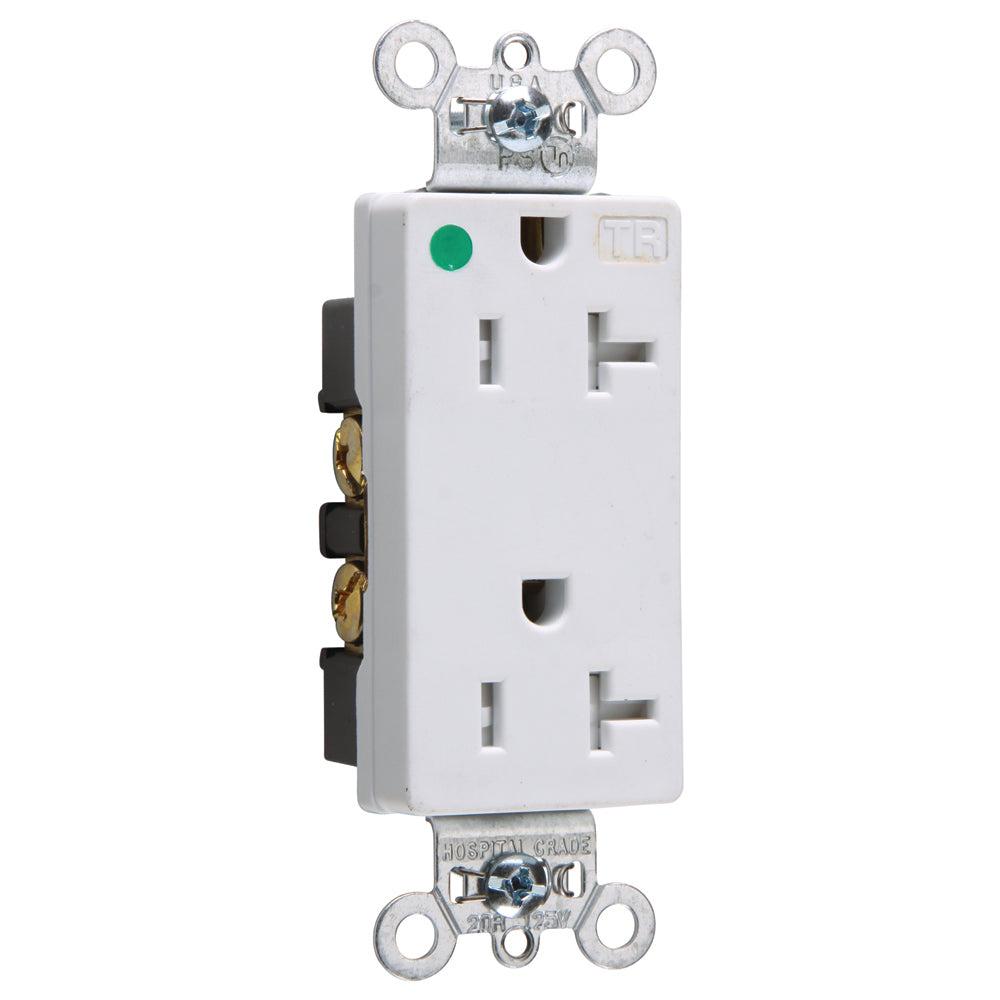

Pass & Seymour TR26362HGW Duplex Receptacle

In stock - 8 items available
SKU: 150981
Regular price $28.11

Dual Mechanical Shutter System to Help Prevent Insertion of Foreign Objects; Auto Ground Clip Assures Positive Ground; Easily Accessed Break Off Line Contact Connecting Tab for Fast and Easy Split Circuit Wiring; Backed Out Tri-Drive Brass Terminal Screws for Faster Installation; Internal Screw Pressure Plate Back and Side Wire Capability; Two Back Wire Holes for Additional Wiring Flexibility; Corrosion Resistant Plated Steel Strap is Locked in to Face and Back Body to Resist Pulling Away from the Face/Body Assembly; 0.032 Inch Thick Brass Triple Wipe Power Contacts; Two Drive Screws Anchor Steel Strap to Back Body and Face Where Abrupt Removal Torque is Greatest


Type: Decorator Duplex, Heavy-Duty
Constructional Feature: Tamper Resistant, Corrosion Resistant
Configuration: 5-20R
Voltage Rating: 125 VAC
Current Rating: 20 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Automatic Grounding
Material: Nylon
Color: White
Wiring: Back, Side
Grade: Hospital
Approval: UL 498, CUL, CSA, FSUL WC596
