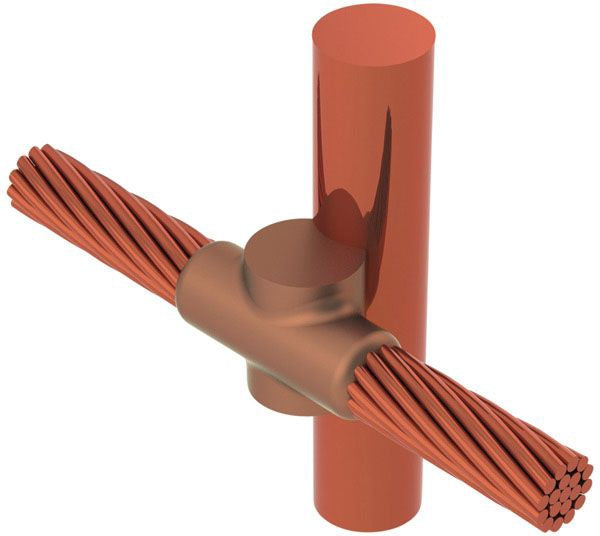

Erico GYE182Q Through Cable to Side of Ground Rod Mold
Regular price
$867.35
Couldn't load pickup availability
Forms a Permanent, Low Resistance Connection; Provides a Molecular Bond; Erico Cadweld Exothermic Connections are Rated with the Same Current Capacity as the Conductor; Portable Installation Equipment with No External Source of Power Required; Installer can be Easily Trained to Make Erico Cadweld Exothermic Connection; Connection can be Visually Inspected
Specifications:
Type: Standard
Rod Type: Sectional/Threaded
Rod Material: Copper Clad
Rod Size: 3/4 Inch
Conductor Size: 4/0 AWG Stranded
Handle Clamp Type: L160
Weld Metal Type: 150
Used On: GY Series Cable to Ground Rod Connector
Approval: UL (Canada and US)
