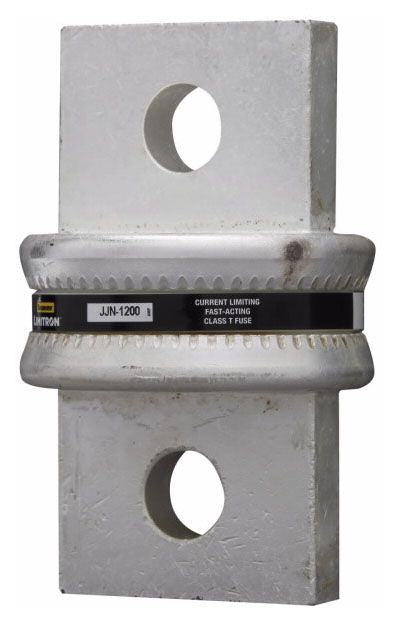

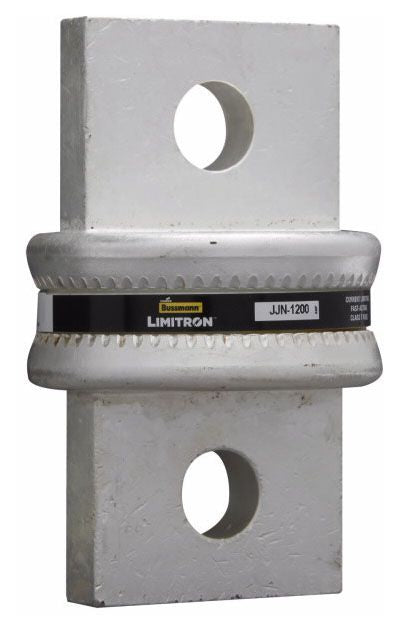

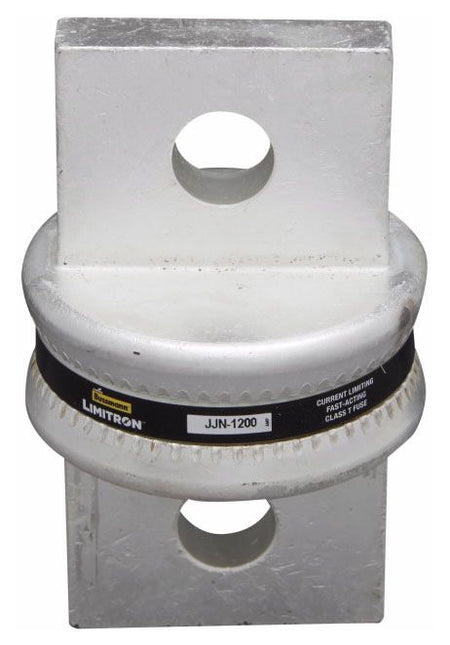

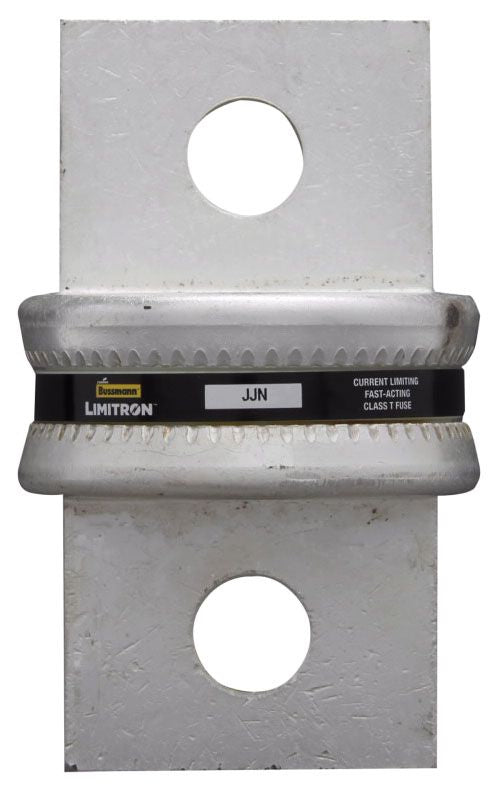

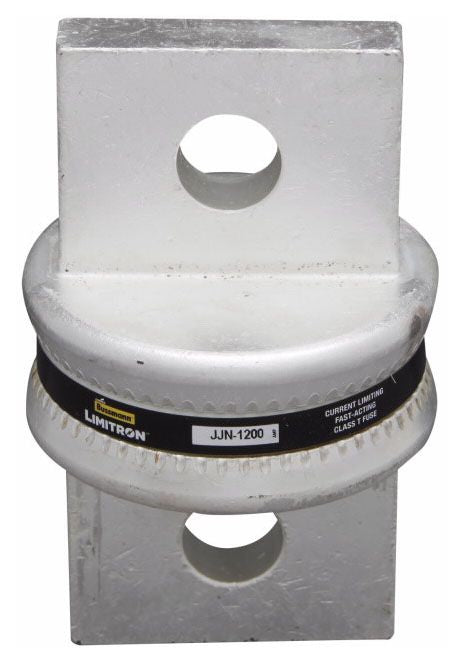

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today’s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Specifications:

Type: Class T
Characteristics: Fast Acting
Voltage Rating: 300 Volt AC, 170 Volt DC
Current Rating: 1200 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical), 100 Kiloamp (DC)
Terminal Type: Bolted Blade
Diameter: 2 Inch
Length: 4 Inch
Approval: UL, CSA C22.2, CE
