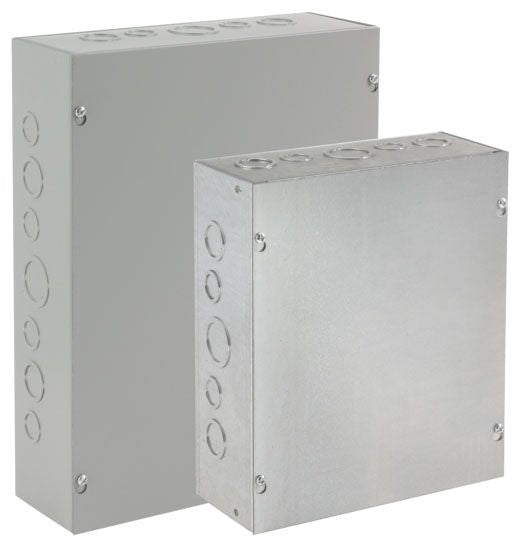

Hoffman Enclosures ASE4X4X4 Screw Cover Enclosure
Couldn't load pickup availability
Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.
Specifications:
Type: Unflanged
Height: 4 Inch
Width: 4 Inch
Depth: 4 Inch
Material: Steel
Material Specification: 16/14/12 Gauge
Finish: Polyester Powder Coated
Color: ANSI 61 Gray
Enclosure: NEMA 1, IP30
Mounting: Flush Mount
Cover Type: Flat, Screw-On
Knockout Location: (4) Sides, (4) Ends
Number of Knockouts: 8
Knockout Size: (2) (1/2-3/4 Inch), (2) (3/4-1 Inch) Concentric Knockout Sides, (2) (1/2-3/4 Inch), (2) (3/4-1 Inch) Concentric Knockout Ends
Service Type: Indoor
Approval: UL 50/50E, CUL, CSA C22.2
