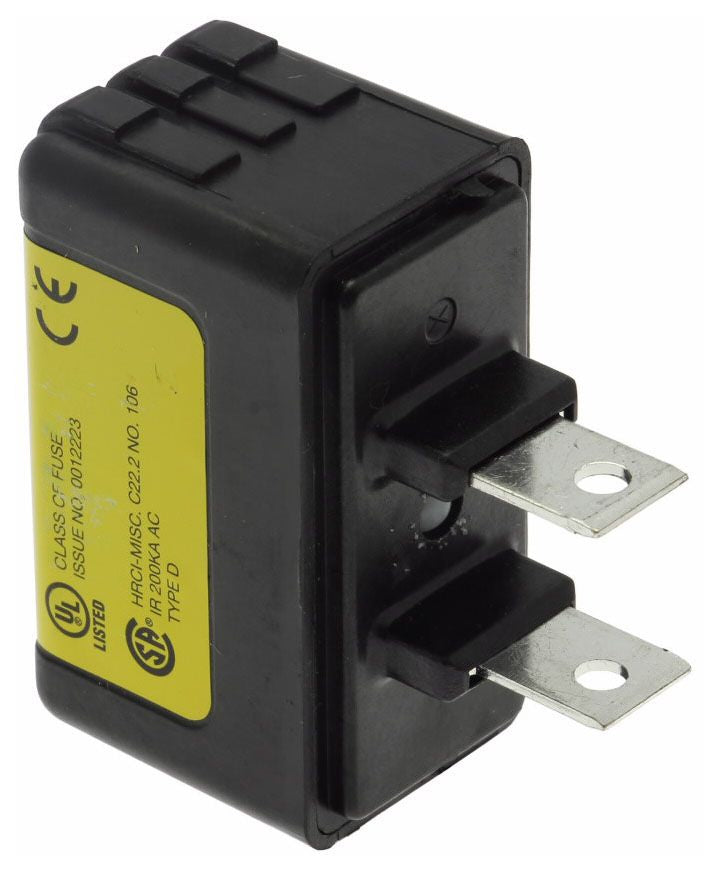

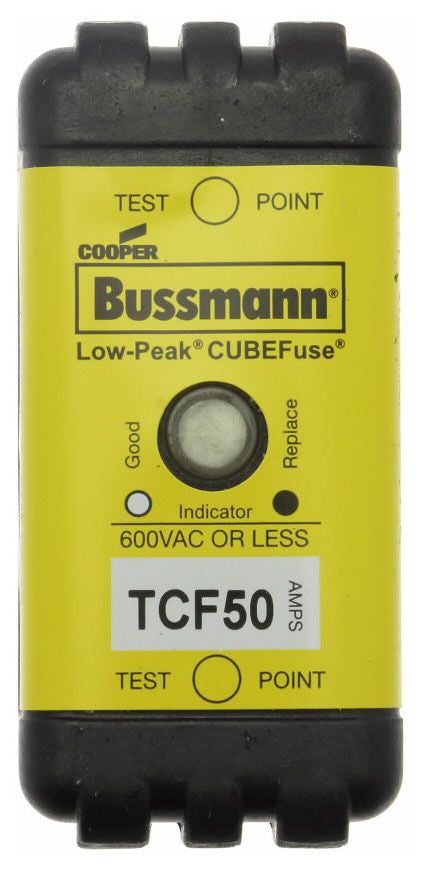

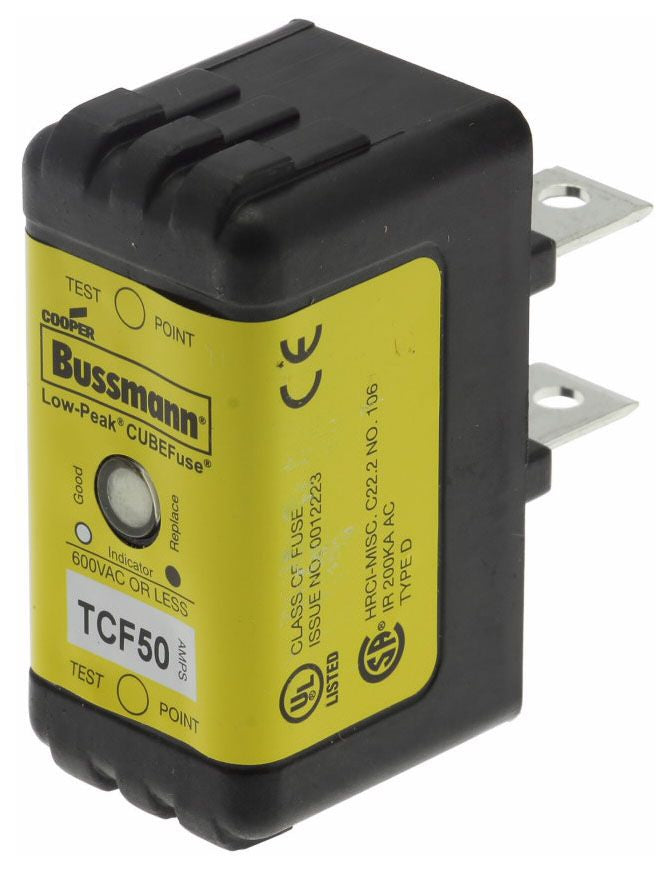

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution — requiring up to 70% less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.

Specifications:

Type: Class CF, Class J
Characteristics: 10 Second Time Delay (at 500 Percent Rated Current), Dual Element, Indicating
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 50 Amp
Interrupting Rating: 300 Kiloamp (Symmetrical, UL), 200 Kiloamp (Symmetrical, CSA), 100 Kiloamp DC (UL, CSA)
Length: 2.13 Inch
Approval: UL, CSA, CE
