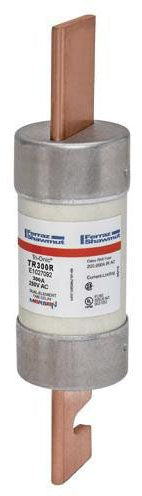

Mersen EP TR300R Low Voltage UL Power Fuse

In stock - 6 items available
SKU: 15620
Regular price $95.14

With advanced material technology added to the existing product, the Tri-Onic TR current-limiting time-delay fuses are engineered for over current protection of motors and transformers, service entrance equipment, feeder and branch circuits. Tri-Onic fuse's proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Now available with optional SmartSpot blown fuse indication technology.


Type: Class RK5
Characteristics: Time Delay
Voltage Rating: 250 Volt AC 50/60 Hertz, 250 Volt DC
Current Rating: 300 Amp
Interrupting Rating: 200 Kiloamp (AC), 20 Kiloamp (DC)
Terminal Type: Blade
Diameter: 2.06 Inch
Length: 8.63 Inch
Approval: UL 248/248-12, CSA C22.2
