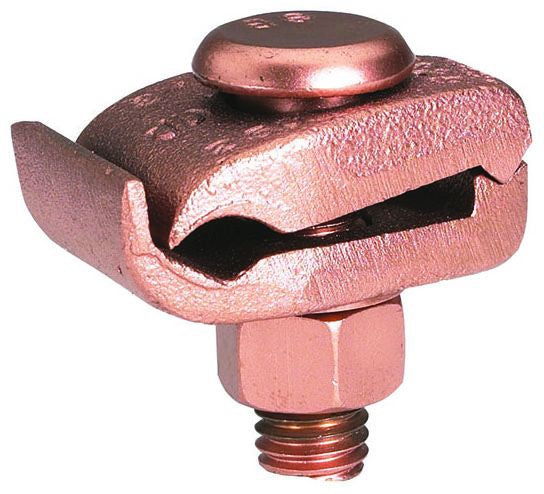

High Copper Alloy Ground Connector for Joining a Range of Cable to 1/4 Inch Thick Bar; Type GB Separates Cable from Bar, GBM Clamps Cable Directly on Bar Surface; 1-Wrench Installation; The High Copper Alloy Cast Body and Durium Bolts, Nuts, Lock Washer Make the GB and GBM Suitable for Direct Burial in Concrete or Ground; For Copper Cable to Bar; RoHS Compliant

Specifications:

Conductor Size: 4 AWG Solid to 2/0 AWG Stranded
Bolt Size: 3/8 Inch
Bar Thickness: 1/4 Inch
Height: 2 Inch
Material: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher
Approval: UL 467, CSA
Used On: Cable to Bar, Direct Burial
