Like the time-proven Vacu-Break design, the Siemens VBII double-break switching action breaks the arc in two places. This reduces heat generation and increases switching speed by doubling the breaking distance. The result is enhanced performance and increased longevity.

Specifications:

Type: General Duty Safety
AC Voltage Rating: 240 Volt
DC Voltage Rating: 250 Volt
Current Rating: 30 Amp
Power Rating: 3 HP at 240 Volt AC 1-Phase, 7-1/2 HP at 240 Volt AC 3-Phase, 5 HP at 250 Volt DC
Number of Poles: 2 or 3
Number of Wires: 3
Fuse Provision: Non-Fusible
Enclosure: NEMA 3R

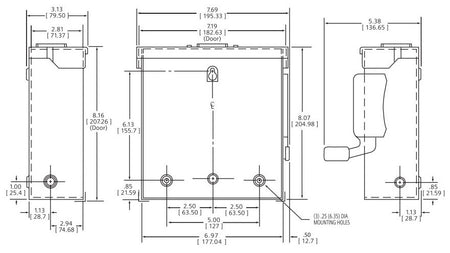

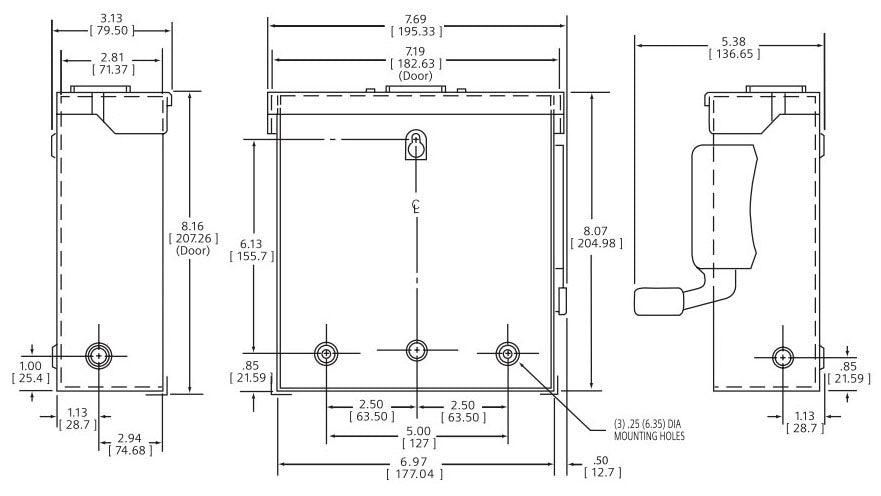

Size: 7.69 Inch Width x 5.38 Inch Depth x 8.16 Inch Height
Enclosure Material: 304 Stainless Steel
Approval: UL
