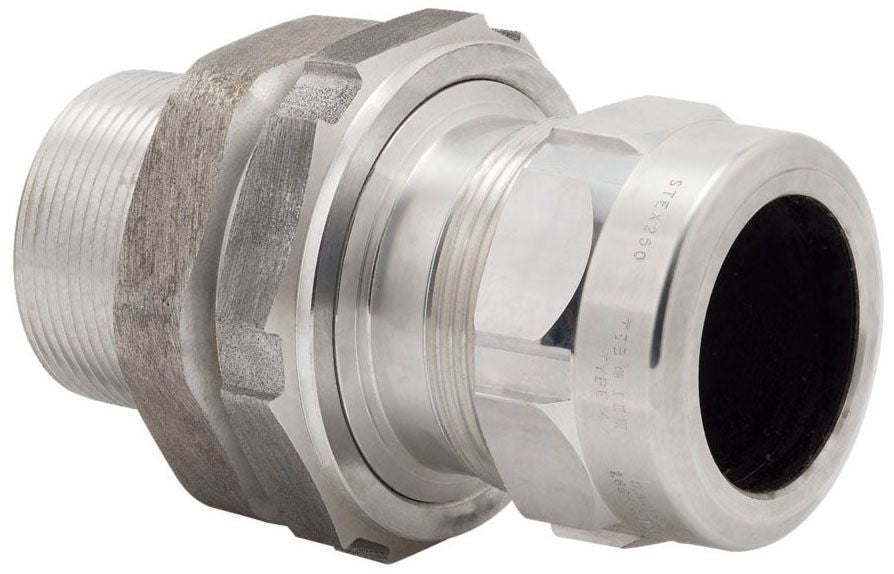

Star Teck STEX250 Armored/Metal Clad Cable Connector

Out of stock
SKU: 156334
Regular price $627.21
OR

Built-In O-Ring to Ensure Liquidtight Installation; High Visibility, Red Union Features Twist-On Action for Easy Connection and Disconnection, also Serves as Mechanical Splitter to Separate Hub from Fitting During Disassembly; Power Grip Grounding Ring is Non-Magnetic Tin-Plated Phosphorous Bronze or Stainless Steel; Dual Sets of Grounding Devices Ensure 360 Degree Long-Term Dependable Grounding; Makes Immediate Contact with the Cable During Insertion; Built-In Cable Jacket Stripping Gauge Easy to Fill Sealing Chamber - Requires Less Sealing Compound - Saves Time and Materials; Optimally Designed Flame Path for Easy Insertion into Hub; Quick-Turn Lock Unitizes Assembly During Installation; RoHS Compliant

Specifications:

Type: Straight
Hub Size: 2-1/2 Inch
Throat Type: Collar Ring, Bushing, Gland Nut
Cable Type: Armored, Metal Clad, Jacketed Cable
Cable Size: 1.825 to 2.375 Inch
Diameter: 4.58 Inch
Constructional Feature: Concrete-Tight, Watertight, Corrosion/Water/Oil-Resistant
Material: Aluminum
Application: Hazardous Location
Approval: UL 514B, CSA
