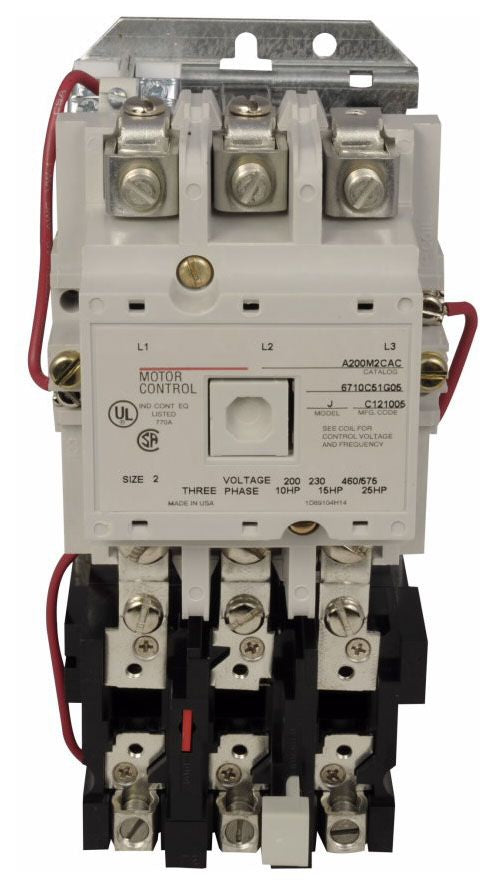

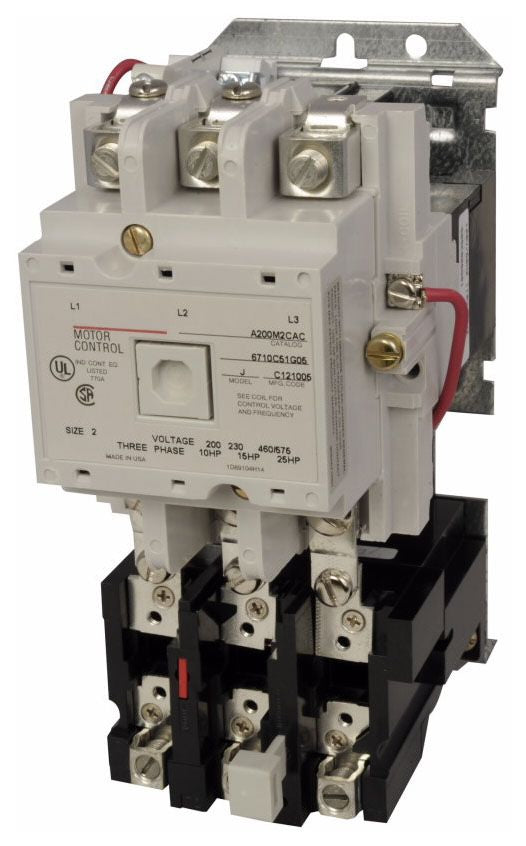

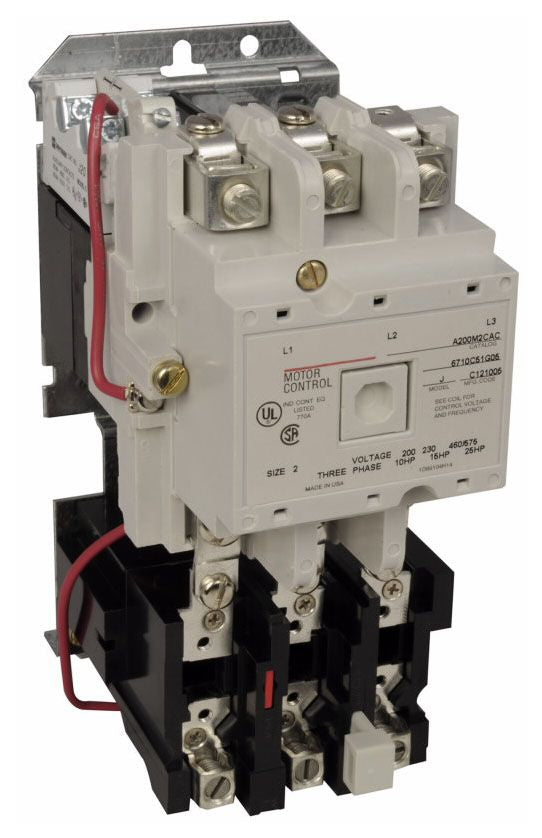

Straight-Through Wiring, Up-Front, Out-Front Terminals for Ease in Installation; Unique Accessory Mounting Cavities Reduce Panel Space Requirements; Snap-in Accessories for Application Flexibility; Vertical and Horizontal Interlocking Capability Increases Application Flexibility; Ambient Compensated Overload Relays Available as Standard, Offering Superior Motor Protection in Variable Motor/Controller Environments

Specifications:

Type: Full Voltage, Non-Reversing
Power Rating/Voltage: 7-1/2 HP at 115 Volt 1-Phase, 10 HP at 208 Volt 3-Phase, 15 HP at 240 Volt 3-Phase, 25 HP at 480/600 Volt 3-Phase
Current Rating: 45 Amp
Phase: 1 or 3
Coil Voltage: 110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz
Size: NEMA 2
Enclosure Type: Open
Overloads: Bi-Metallic Ambient Temperature Compensated Manual Reset
Construction Standard: NEMA
