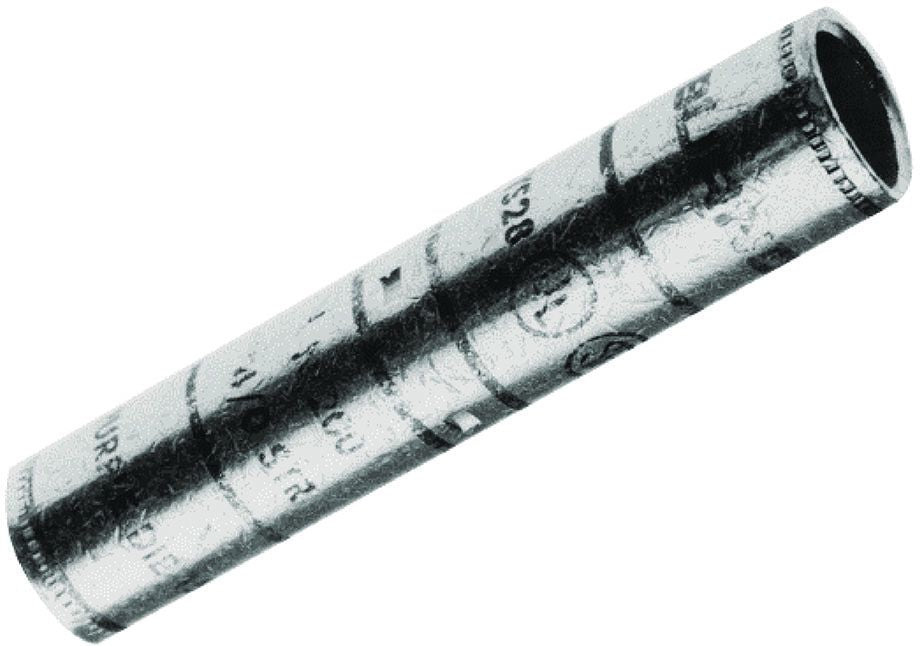

Burndy YS3C Compression Cable Splice

In stock - 30 items available
SKU: 156567
Regular price $13.83
OR

Long Barrel Length; Ideal for 600 V Heavy Duty Applications also May be Used at Higher Voltages up to 35 KV; Four (4) Center Conductor Stops Provides a Center Wire Stop for Proper Conductor Insertion; High Pull Out Force Provides Added Security for Much Greater Mechanical and Electrical Properties; RoHS Compliant

Specifications:

Type: Butt with Centre Wire Stop
Voltage Rating: 600 V to 35 KV
Conductor Size: 3 AWG Stranded, 2 AWG Solid
Conductor Material: Copper
Color Code: White
Barrel Type: Long with Beveled Entry, Chamfered
Length: 2.8 Inch
Outer Diameter: 0.38 Inch
Body Material: Electro-Tin Plated Copper
Approval: UL, CSA
