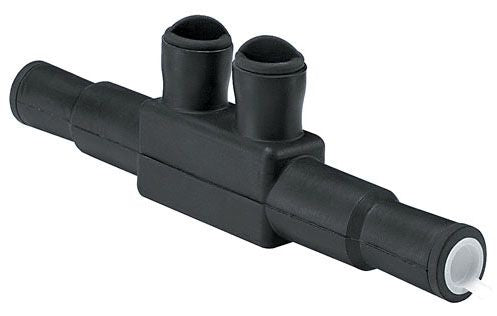

Ilsco USPA-350SS-DB Mechanical Underground Connector Splice

Encapsulated with Dielectric Strength Polymer; Manufactured from High Strength Aluminum Alloy; Compact Design; Connector Rated for 600 Volts, 90 Deg C; Range Taking; Completely Watertight in Line Splice; Ready for Installation (Not a Mold for Use with Mixed Compounds) No Taping Required; No Temperature or Humidity Restrictions; Suitable for Use with Copper or Aluminum Conductors; Easily Accessible in Small Hand Holes; Prevents Oxides from Forming; Ensures Reliability; Reduces Inventory; RoHS Compliant

Specifications:

Type: In-Line Watertight
Voltage Rating: 600 V
Minimum Conductor Size: 10 AWG Stranded
Maximum Conductor Size: 350 KCMIL
Conductor Material: Aluminum/Copper
Number of Screws: 2
Hex Size: 5/16 Inch
Size: 8-5/8 Inch L
Body Material: High Strength 6061-T6 Aluminum Alloy
Insulation Type: EPDM Rubber
Approval: UL 486D, CSA, RUS
