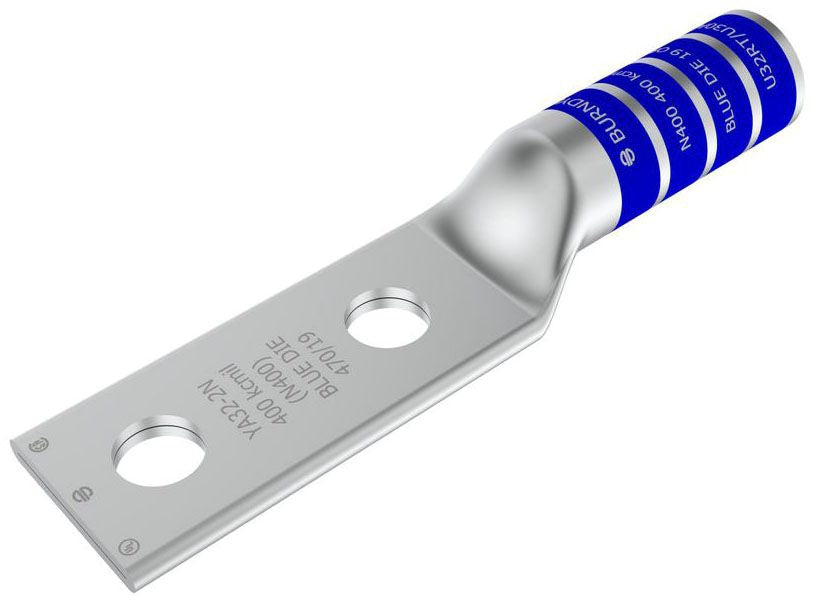

Burndy YA322N Compression Cable Lug

In stock - 6 items available
SKU: 157072
Regular price $25.29

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant


Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 400 KCMIL Stranded (Code), 400 (Navy)
Barrel Type: Long, Straight
Barrel Length: 2.12 Inch
Pad Size: 1.4 Inch Width x 0.19 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Blue
Die Index: 19/470
Material: Electro Tin Plated Copper
Overall Length: 5.85 Inch
Approval: UL, CSA
