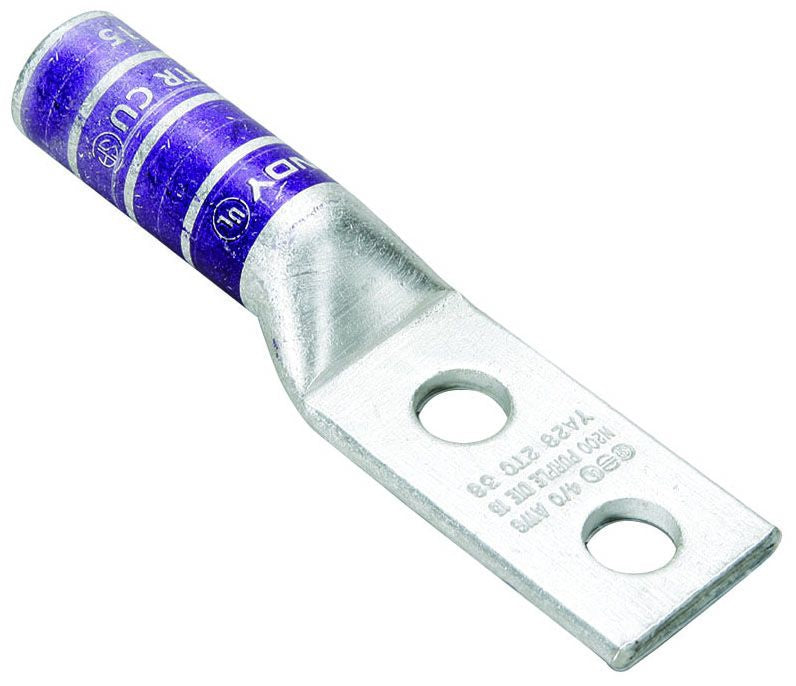

Burndy YA312N Compression Cable Lug

Out of stock
SKU: 157077
Regular price $33.61
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 350 KCMIL Stranded
Barrel Type: Long, Straight
Barrel Length: 2 Inch
Pad Size: 1.29 Inch Width x 0.18 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Red
Die Index: 18/324
Material: Electro-Tin Plated Copper
Overall Length: 5.69 Inch
Approval: UL 468A/B, CSA
