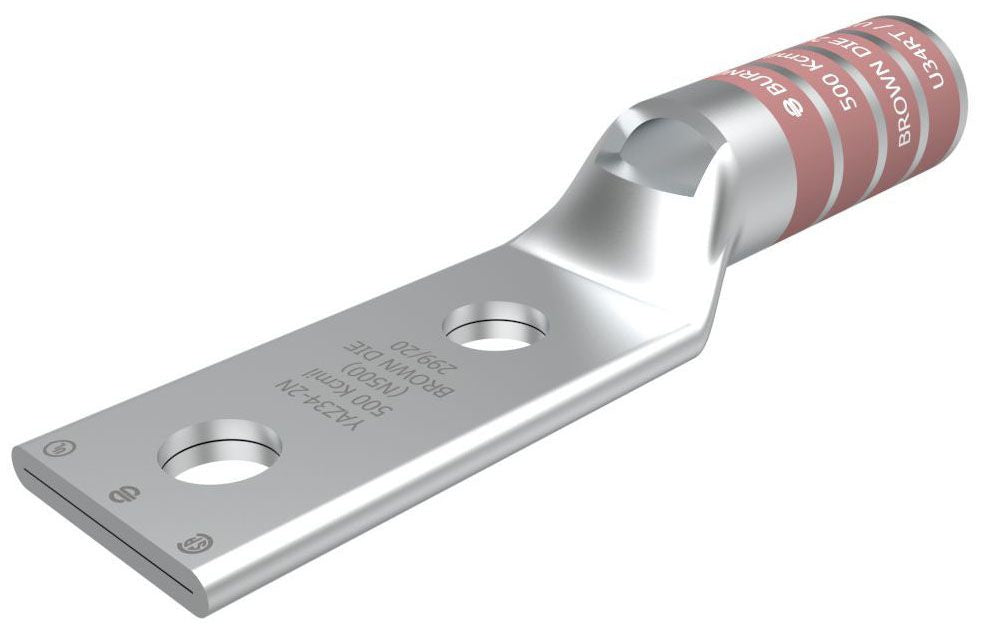

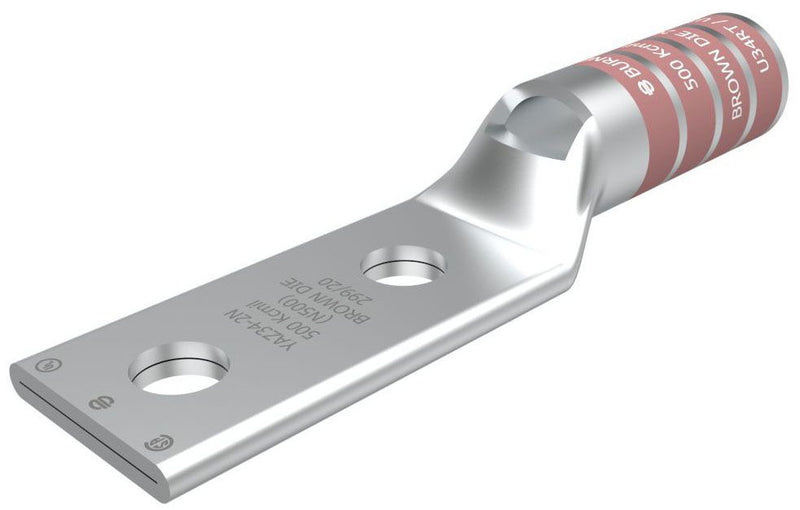

Burndy YAZ342N Compression Cable Lug

In stock - 6 items available
SKU: 157153
Regular price $53.56
OR

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 500 KCMIL Stranded (Code)
Barrel Type: Long, Straight, Skived
Barrel Length: 2.25 Inch
Pad Size: 1.55 Inch Width x 0.23 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Brown
Die Index: 20/299
Material: Electro Tin Plated Copper
Overall Length: 6.04 Inch
Approval: UL 468A/468B, CSA
